Rosemount 3144P temperature transmitter provides you with industry-leading temperature measurements with accuracy, stability and reliability. The transmitter's dual chamber housing ensures reliability and advanced diagnostics to keep your measuring points up and running. The transmitter combines Rosemount X-well™ technology with the Rosemount 0085 clamp sensor to accurately measure process temperature, eliminating the need for hot tubing or process penetration.

Enhanced visibility of the temperature process with the Rosemount 3144P temperature transmitter

.Enhanced security

.Compliance with regulations Compliance with regulations

.Make the best use of limited resources

.Meet production and quality target

Take advantage of Rosemount X-well technology, advanced diagnostic capabilities, and superior transmitter reliability and accuracy

.Minimize the number of products that do not meet specifications

.Reduce maintenance and downtime

.Improve the utilization of limited resources

.Meet regulatory requirements

 The industry-leading Rosemount 3144P Single Point Temperature Transmitter delivers unmatched field reliability and innovative process measurement solutions and diagnostics Transmitter features include:

 ■ Temperature measurement assembly with Rosemount X-well Technology (option code PT)

 ■ Dual and single sensor input capabilities

 ■ Transmitter-sensor matching (option code C2)

 ■ Integral transient protector (option code T1)

 ■ IEC 61508 Safety Certificate of Compliance (option code QT)

 ■ Advanced sensor and process diagnostics (option codes D01 and DA1)

 ■ Large, easy to read LCD display (option code M5)

 ■ “Assemble to Sensor” option (option code XA)

Functional specifications

Inputs

User-selectable. See for sensor options.

Output

Two-wire device with either 4–20 mA/HART, linear with temperature or input,

or completely digital output with FOUNDATION Fieldbus communication (ITK 6.0.1 compliant).

Isolation

Input/output isolation specified to 500 Vdc (500 Vrms 707 V peak) at 50/60 Hz.

Humidity

limits 0–99 percent relative humidity, non-condensing

Update time

Approximately 0.5 second for a single sensor (one second for dual sensors).

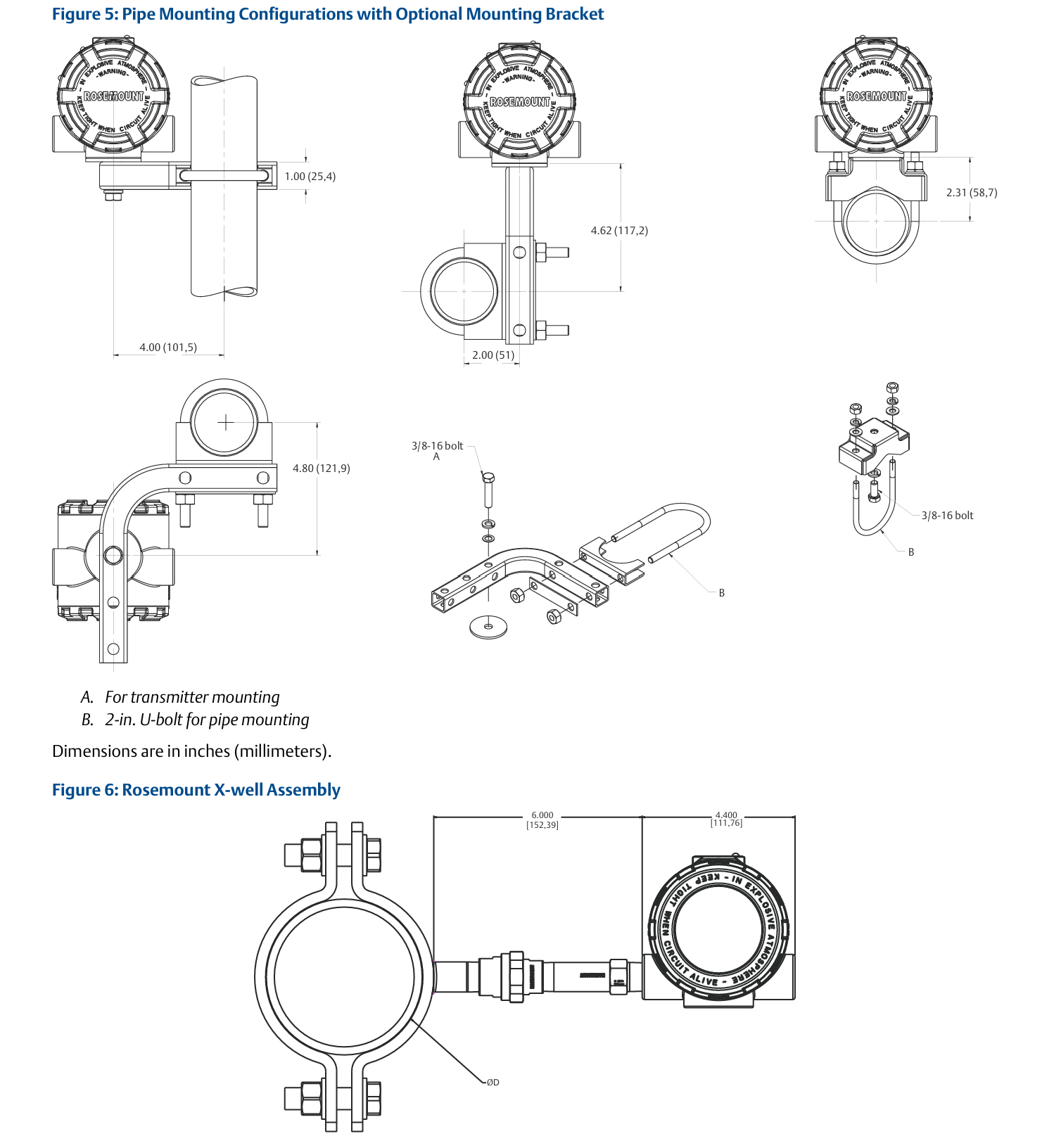

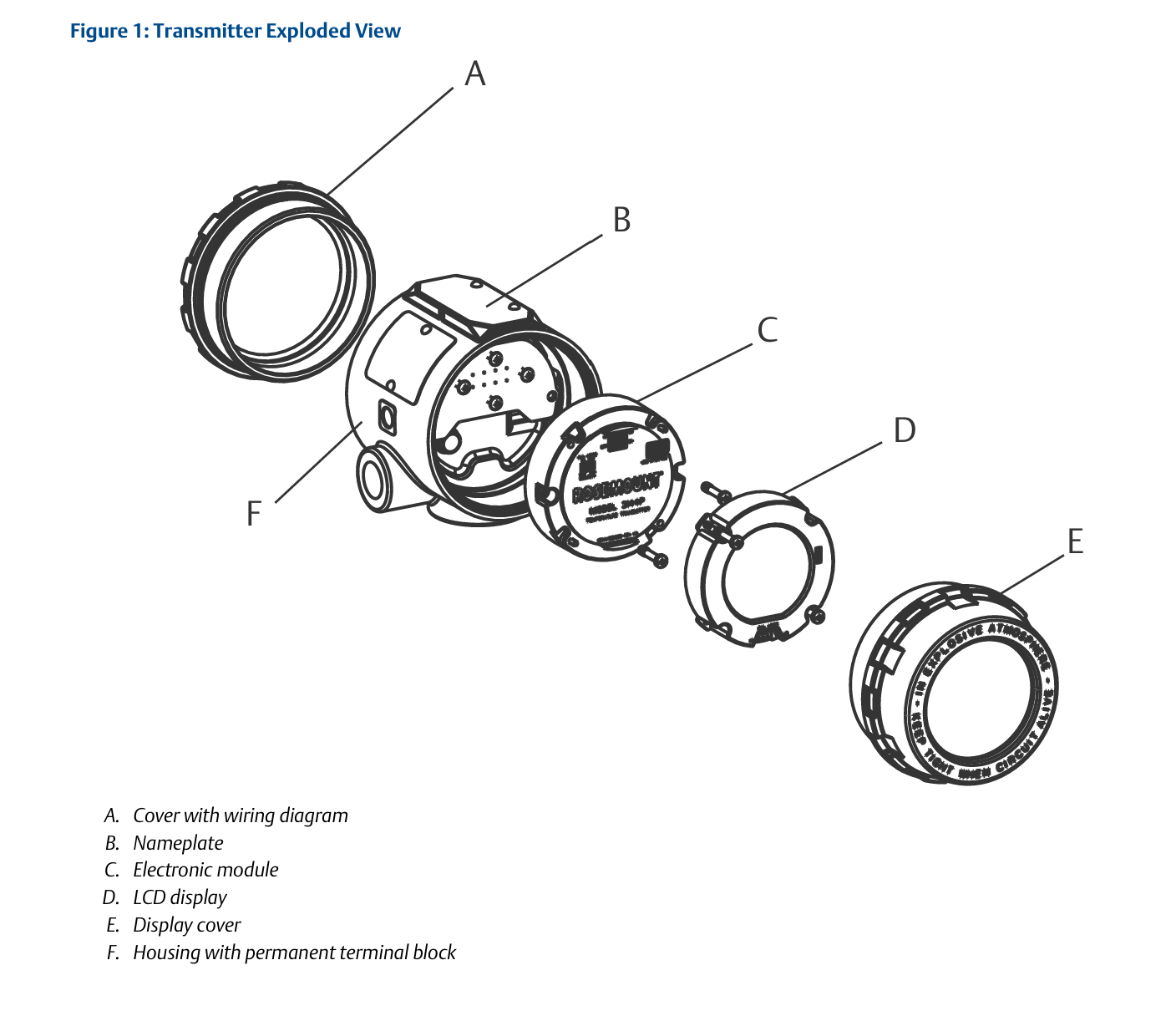

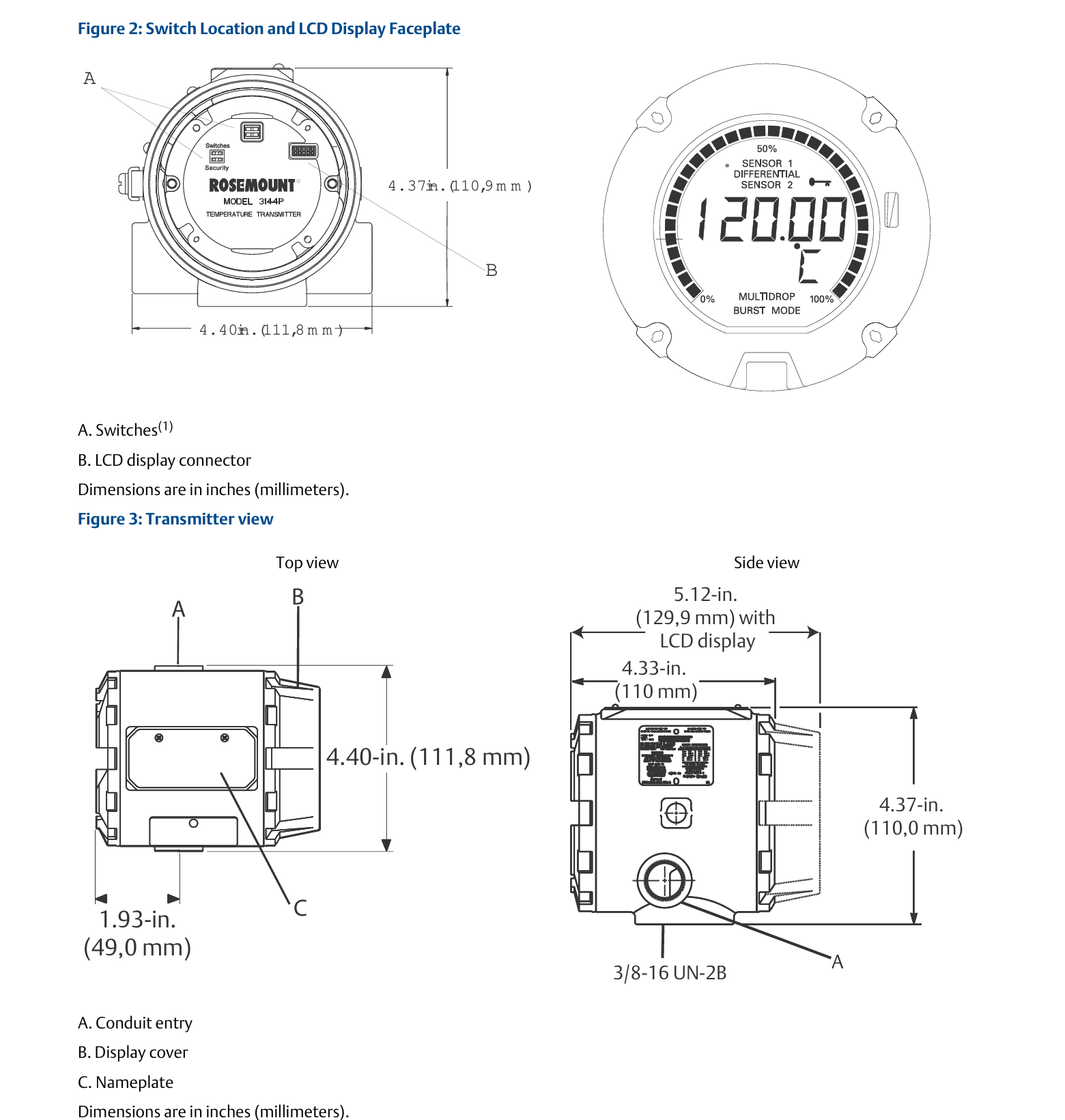

 ------Dimensional drawings----------------------------------------------------------------------------------------------------------------------
