PRODUCTS DETAILS

EJA118E diaphragm sealed differential pressure transmitter adopts monocrystal silicon resonant sensor technology, which is suitable for measuring the flow, level, density and pressure of high and low temperature, high vacuum, high viscosity and easy crystallization medium, converting the differential pressure into 4 ~ 20mA DC current signal output, which can measure, display or remotely monitor the static pressure. With fast response, remote

setting, self-diagnosis and other functions.

EJA118E features include:

.EJA118E Diaphragm Sealed Differential Pressure Transmitters can be used to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure.

.SIL 2 for safety requirement.

.Active density compensation of capillary filling fluid

.Provide HART 5/7, HART(1~5V DC) low power, FF fieldbus, PROFIBUS PA and BRAIN communication protocols.

.Accuracy ± 0.2%

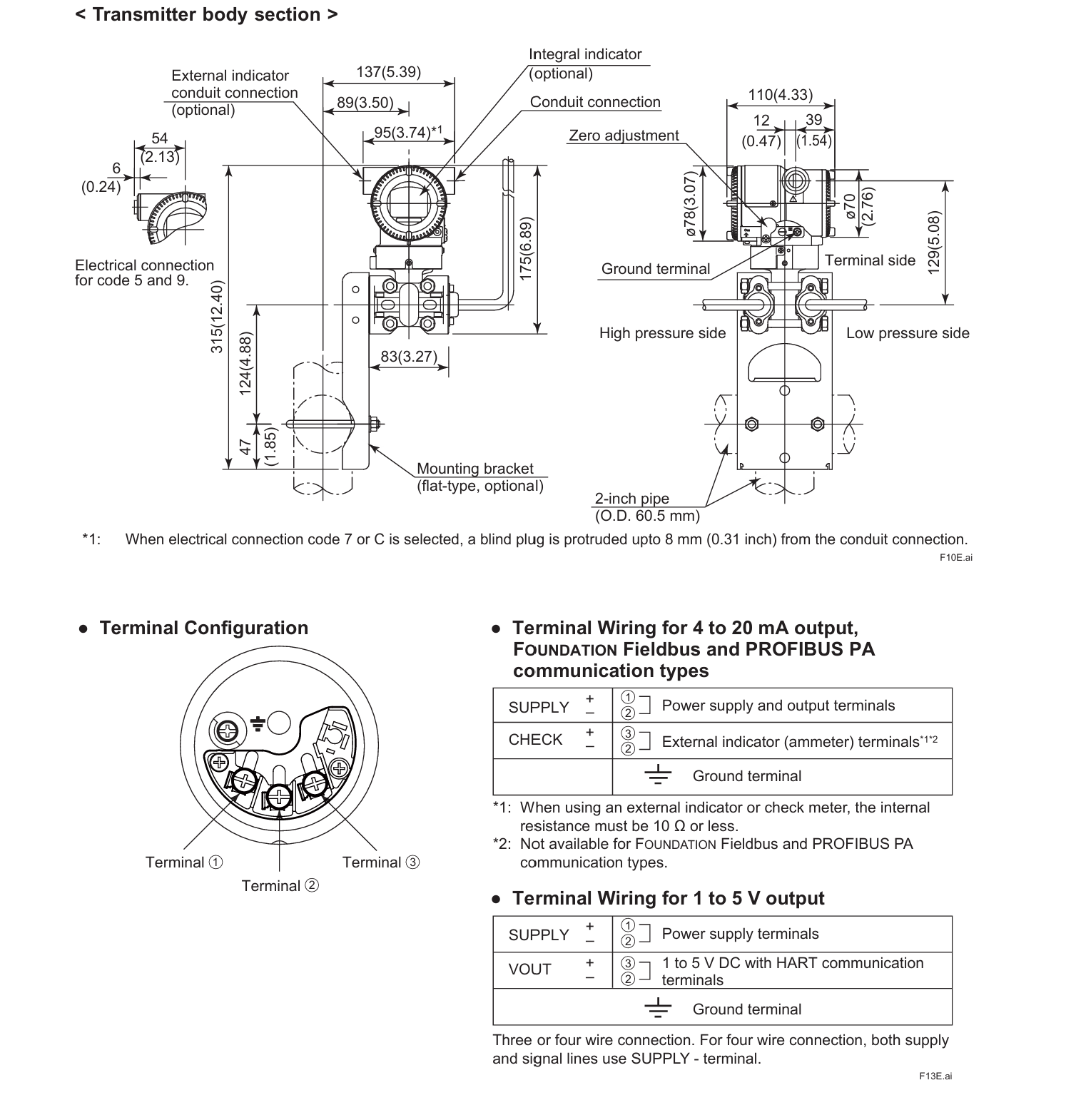

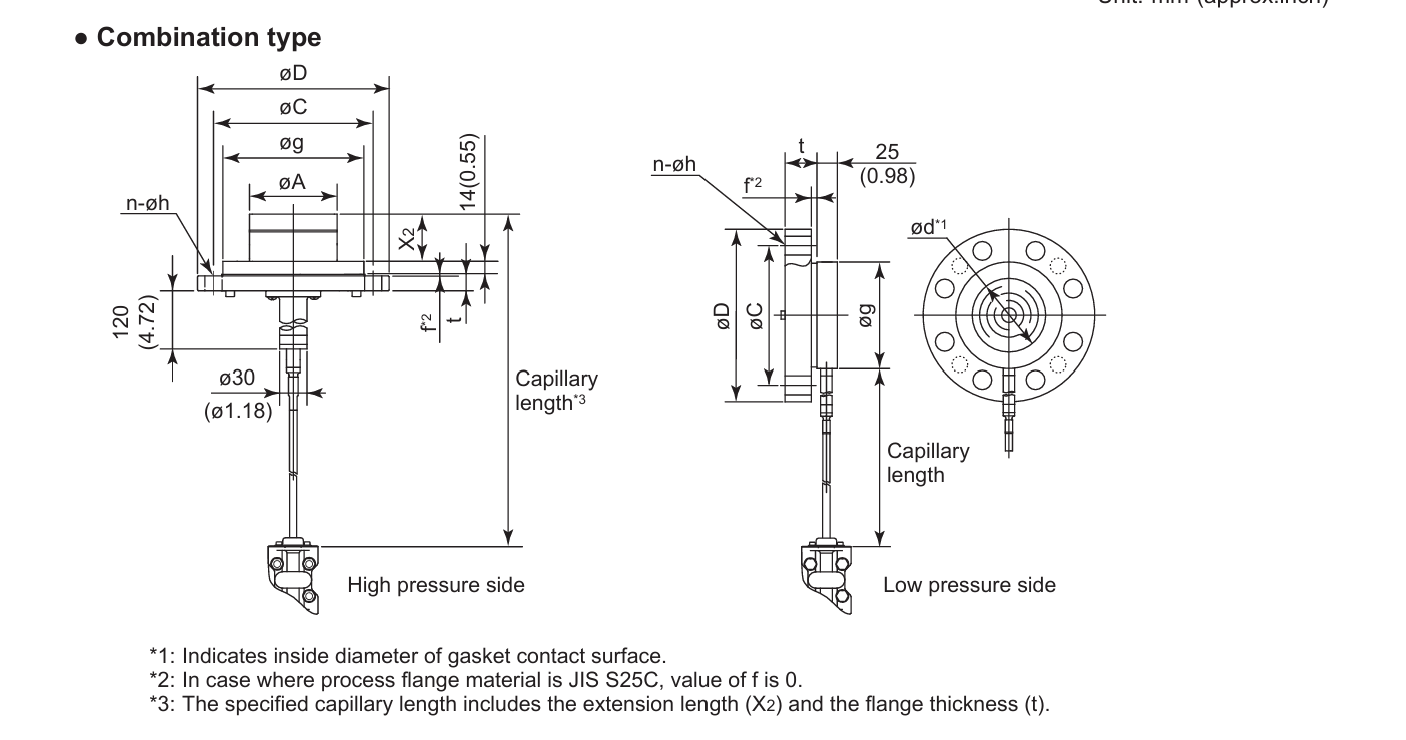

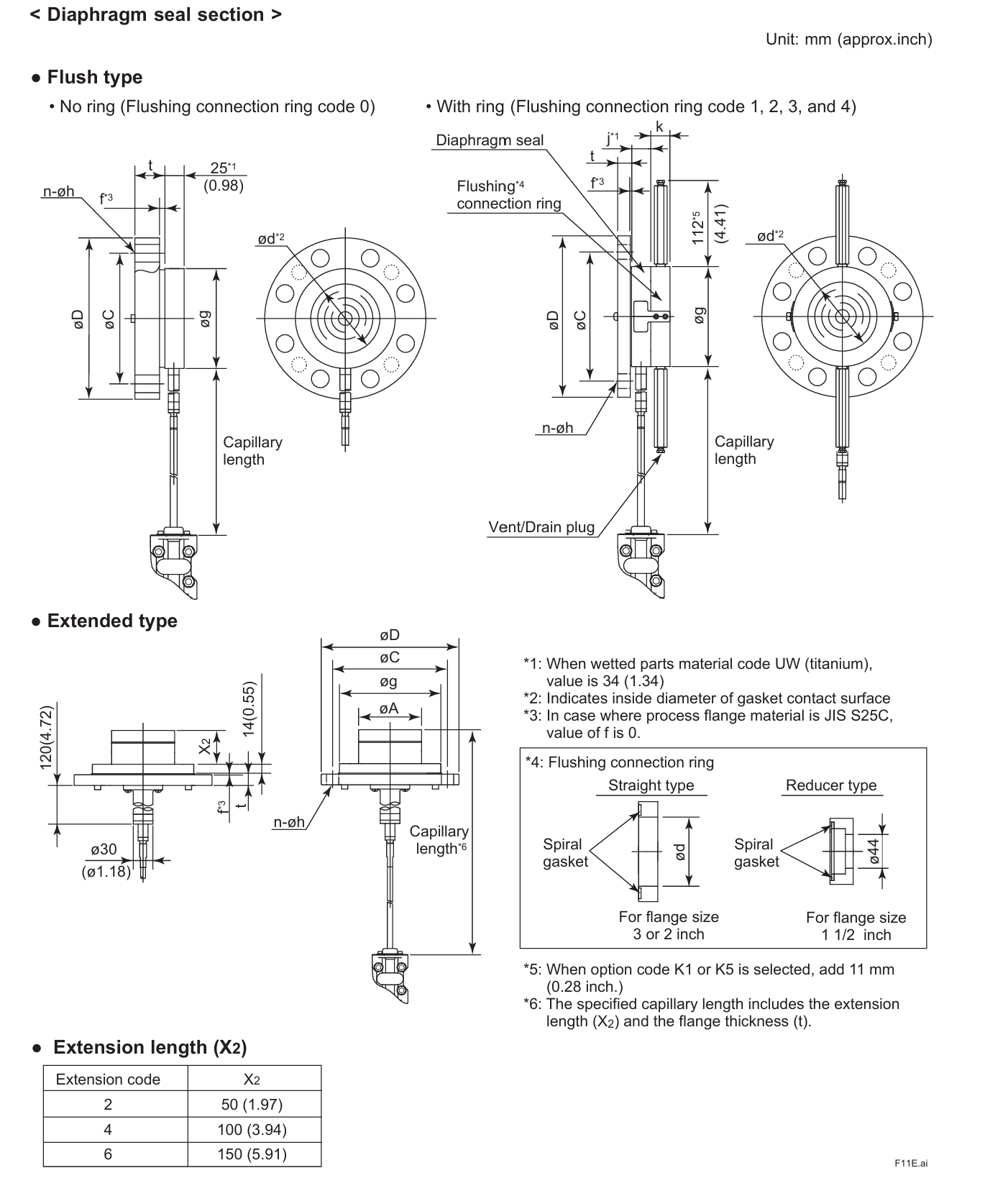

 DIMENSIONS
