EJA510E and EJA530E Absolute and Gauge Pressure Transmitter

EJA530E

Product Details

----------Product Feature------------------------------------------------------------------------------------------------------------------------------------------------------------------

The high performance absolute and gauge pressure transmitter EJA510E and EJA530E feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure. EJA510E and EJA530E output a 4 to 20 mA DC signal corresponding to the measured pressure. It also features quick response, remote setup and monitoring via BRAIN or HART communications and self diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available.

EJA510E features include:

■EJA530E: ±0.1% of URL for 10 years

■ ±0.04% of Span

■Provide HART 5/7, HART(1~5V DC) low power, FF fieldbus, PROFIBUS PA and BRAIN communication protocols.

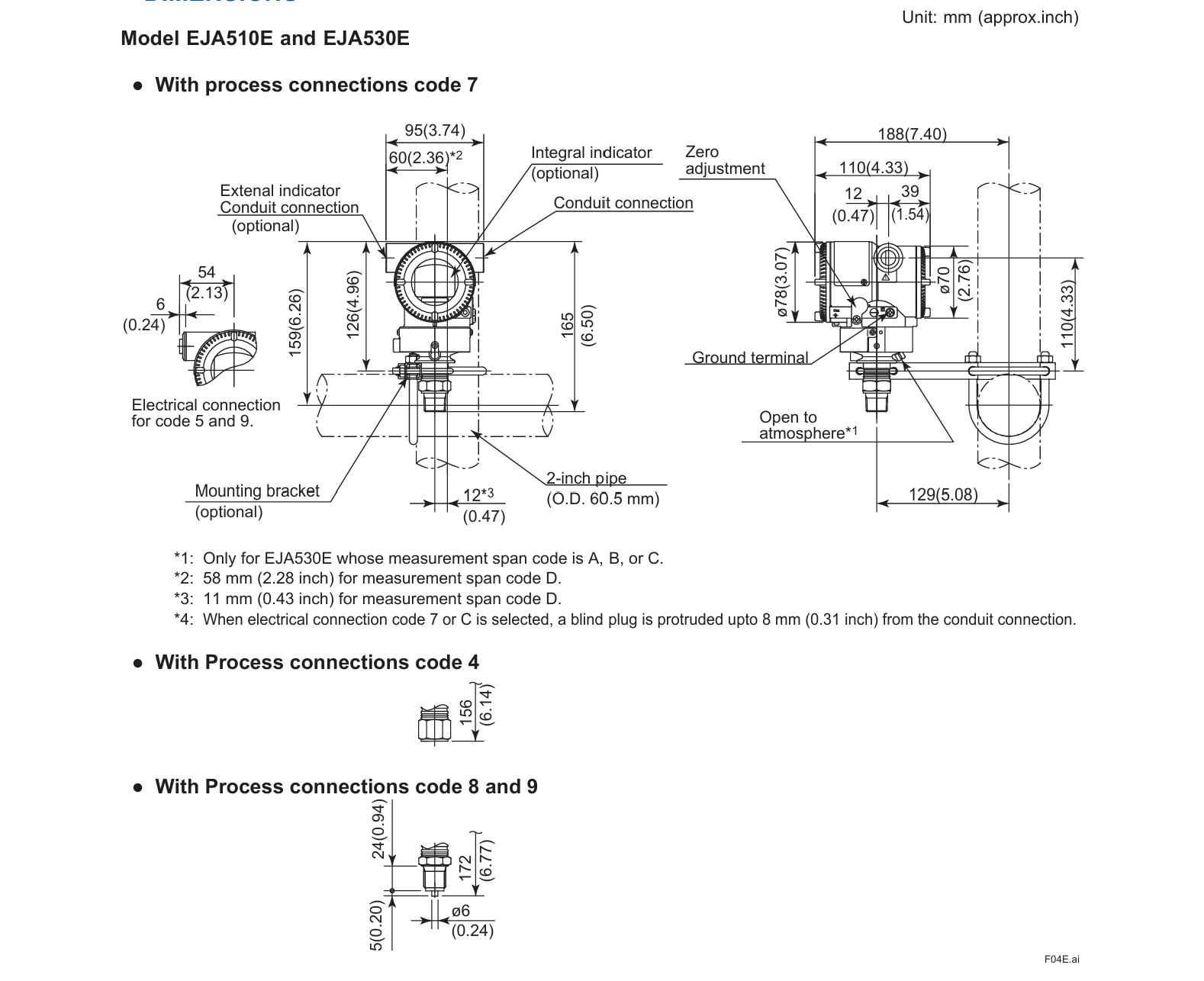

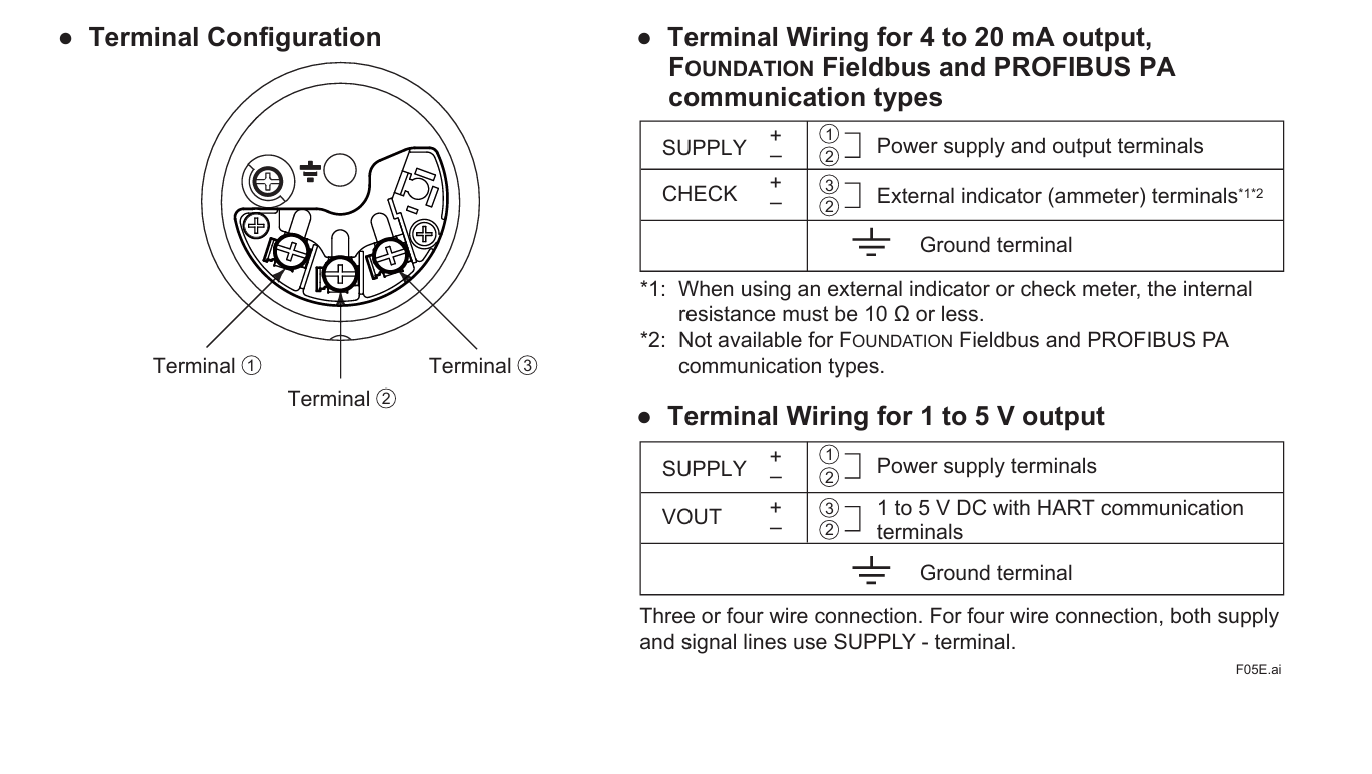

---------Dimensional Drawings--------------------------------------------------------------------------------------------------------------------------------------

 MODEL AND SUFFIX CODES

EJA510E EJA530E	Suffix Codes	Description
Output signal	-D ............................. -J ............................. -F ............................. -G............................. -Q............................	4 to 20 mA DC Output with digital communication (BRAIN protocol) 4 to 20 mA DC Output with digital communication (HART 5/HART 7 protocol)*1 Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C31T02-01EN) Digital communication (PROFIBUS PA protocol, refer to GS 01C31T04-01EN) Low Power, 1 to 5 V DC with digital communication (HART 7 protocol)
Measurement span (capsule)	A............................ B............................ C............................ D............................	10 to 200 kPa (1.45 to 29 psi) 0.1 to 2 MPa (14.5 to 290 psi) 0.5 to 10 MPa (72.5 to 1450 psi) 5 to 50 MPa (720 to 7200 psi)*10
Wetted parts material *2		Process connector Diaphragm Others
	S......................... H.........................	316L SST # Hastelloy C-276 3# 316L SST # Hastelloy C-276 3# Hastelloy C-276 3# Hastelloy C-276 3#
Process connections * For a diaphragm seal system, refer to process connections code table (p.6)	4...................... 7...................... 8...................... 9......................	1/2 NPT female 1/2 NPT male G1/2 DIN 16 288 male 4 M20×1.5 DIN 16 288 male 4
─	N....................	Always N
─	-0 ................	Always 0
Amplifier housing	1............... 3............... 2...............	Cast aluminum alloy Cast aluminum alloy with corrosion resistance properties 5 ASTM CF-8M stainless steel 6
Electrical connection	0............ 2............ 4............ 5............ 7............ 9............ A............ C............ D............	G1/2 female, one electrical connection without blind plugs 1/2 NPT female, two electrical connections without blind plugs M20 female, two electrical connections without blind plugs G1/2 female, two electrical connections with a blind plug7 1/2 NPT female, two electrical connections with a blind plug7 M20 female, two electrical connections with a blind plug*7 G1/2 female, two electrical connections and a 316 SST blind plug 1/2 NPT female, two electrical connections and a 316 SST blind plug M20 female, two electrical connections and a 316 SST blind plug
Integral indicator	D......... E......... N.........	Digital indicator 8 Digital indicator with the range setting switch (push button) 9 (None)
Mounting bracket	L...... N......	316 SST 2-inch pipe mounting None
Optional Codes		/ Optional specification

Specifications

Degrees of protection IP66/IP67, Type 4X

Explosion Protected type (FM)，ATEX，(CSA)， IECEx

FUNCTIONAL SPECIFICATIONS 4 to 20 mA HART / BRAIN， 1 to 5 V HART

Ambient Temperature Limits −40 to 85°C (−40 to 185°F) −30 to 80°C (−22 to 176°F) with LCD display

Process Temperature Limits −40 to 120°C (−40 to 248°F)

Ambient Humidity Limits 0 to 100% RH

-----------EJA530E transmitter is the first to use digital sensor - monocrystalline silicon resonant sensor, product accuracy is higher (±0.075%), stability and reliability is higher, with explosion-proof safety certification, double seal certification, high protection level.
