------Product Details------------------------------------------------------------------------------------------------------------ The Rosemount 5300 level transmitter is ideal for challenging liquid, slurry and solid measurements, providing superior reliability and safety in level and interface applications. Provides industry-leading measurement capabilities. The Rosemount 5300 series offers many advantages such as easy installation, no calibration, and is not affected by process conditions. The radar is SIL2 certified, making it your first choice for security applications.
------Features-------------------------------------------------------------------------------------------------------------------------------------------------------■ Industry leading measurement capability and reliability
■ Safety certified to IEC 61508 for SIL2 applications
■ Increased plant availability with predictive maintenance and easy troubleshooting
■ Reduced instrument count and process penetrations with a multivariable transmitter
------ Measurement principle------------------------------------------------------------------------------------------------------------------------------------
Low power, nano-second microwave pulses are guided down a probe submerged in the process media. When a
microwave pulse reaches a medium with a different dielectric constant, part of the energy is reflected back to the
transmitter.
The transmitter uses the residual wave of the first reflection for measuring the interface level. Part of the wave, which
was not reflected at the upper product surface, continues until it is reflected at the lower product surface. The speed of
this wave depends fully on the dielectric constant of the upper product.
The time difference between the transmitted and the reflected pulse is converted into a distance, and the total level or
interface level is then calculated. The reflection intensity depends on the dielectric constant of the product: the higher
dielectric constant value, the stronger reflection.
------Total Probe Length------------------------------------------------------------------------------------------------------------------------------------------------------------------

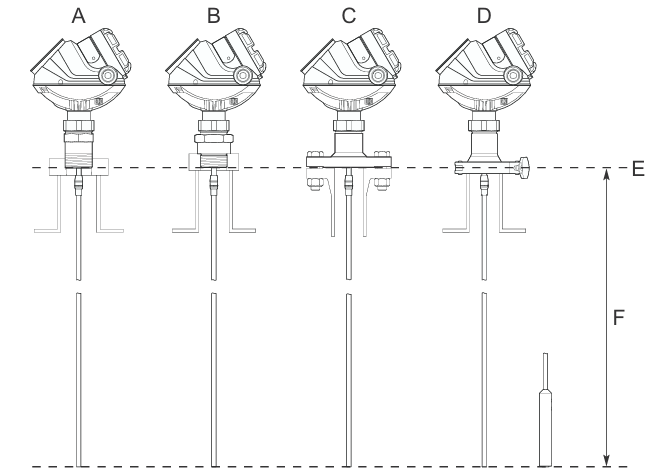

A. NPT
B. BSPP (G)
C. Flange
D. Tri Clamp
E. Upper reference point
F. Total probe length
Select the probe length according to the required measuring range (the probe must be hung and fully extended
through the entire distance where level readings are desired).
------measuring range---------------------------------------------------------------------------------------------------------------------------------------------
The measuring range depends on probe type, dielectric constant of the product and installation environment, and is

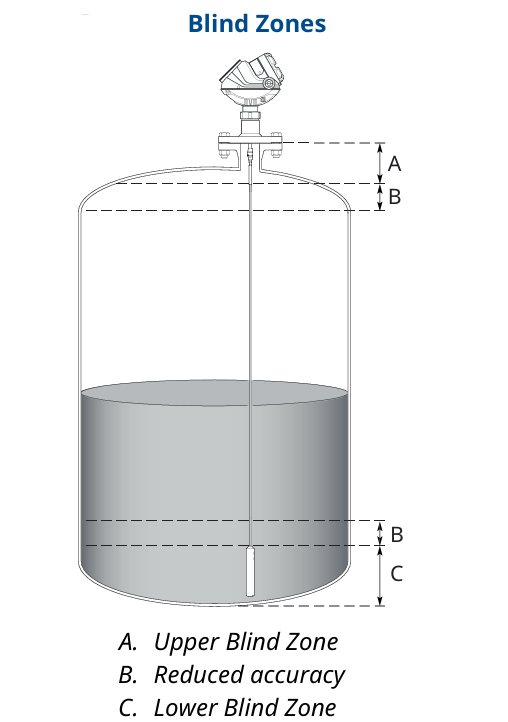

limited by the Blind Zones at the very top and bottom of the probe. In the Blind Zones, the accuracy exceeds ±1.18 in.
(30 mm), and measurements may not be possible. Measurements close to the Blind Zones will have reduced accuracy.
NOTE: Measurements may not be possible in the Blind Zones, and measurements close to the Blind Zones will have reduced
accuracy. Therefore, the 4-20 mA points should be configured outside these zones.
