Product overview

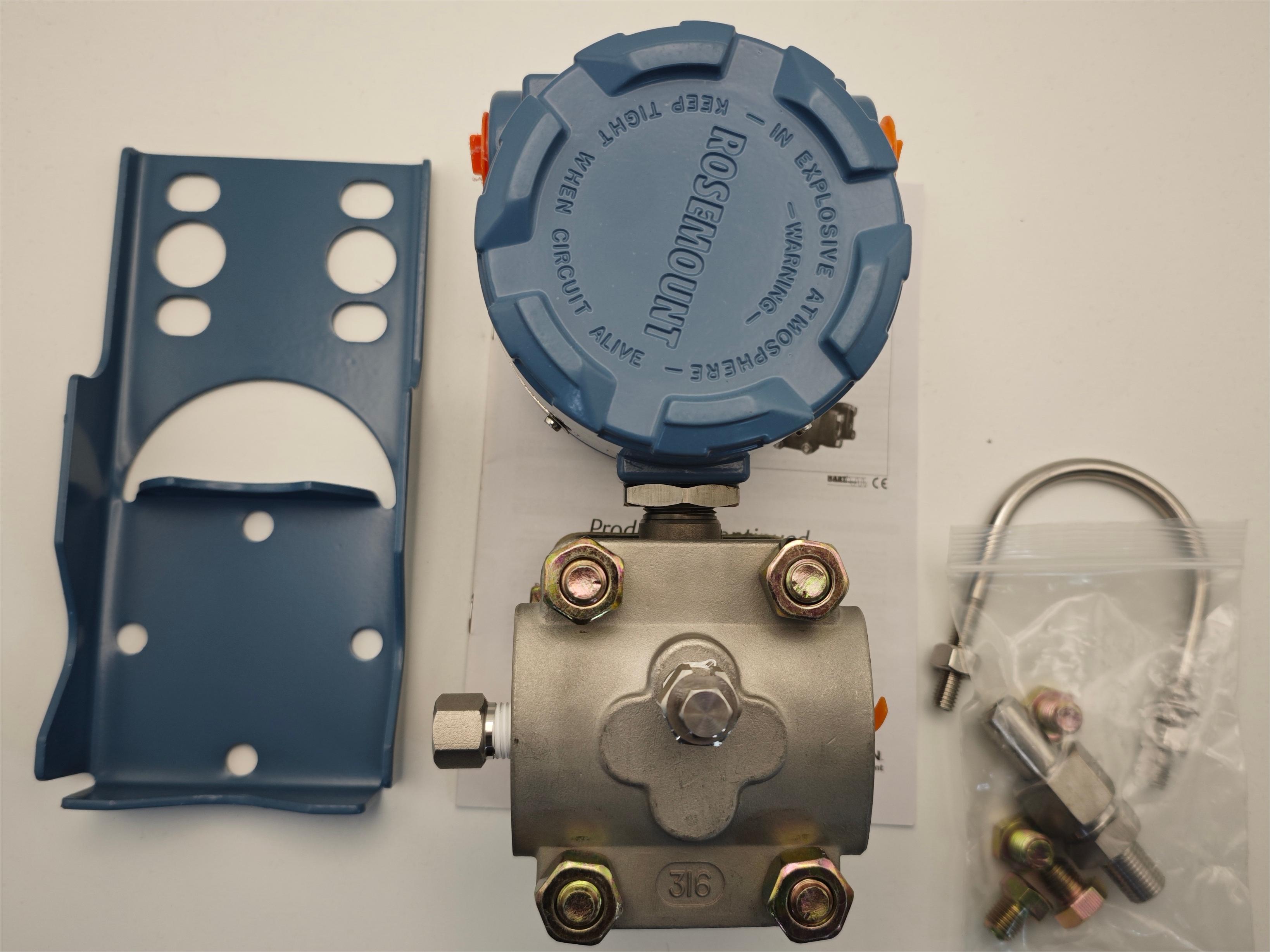

          The Rosemount 1151 transmitter is a classic Emerson Process Management product designed for pressure, differential pressure, flow and level measurement in industrial process control. Thanks to its high accuracy, excellent stability and wide applicability, the product has become the instrument of choice in petrochemical, power, metallurgy, water treatment and other industries to help users achieve efficient and safe process management.

Core functions and technical advantages

1. High precision measurement
. The accuracy level can reach ±0.075%, ensuring accurate acquisition of key process parameters.
.Capacitive sensor technology, strong anti-interference ability, excellent long-term stability.
2. Wide measuring range
. Support differential pressure (DP), gauge pressure (GP), absolute pressure(AP) and other measurement types.
. The range covers 0-1kPa to 0-41MPa to meet the diverse needs from micro-pressure to high pressure.
3. Intelligent communication and debugging
. Compatible with HART protocol, support remote parameter configuration and real-time data monitoring.
.Fast calibration is possible with a handheld terminal or control system And diagnosis.
4. Environmental adaptability
. Operating temperature range: -40℃85℃ (Electronics departmentParts), suitable for harsh working conditions.
.Protection level IP67, explosion-proof certification (optional Ex d/Exia) to ensure safe operation in dangerous areas.
5. Modular design
. Diaphragm material can be 316L stainless steel, Hastelloy C-276, strong corrosion resistance.
.Flexible configuration of flanges, threads and other connection methods, suitable Various installation scenarios.

Technical parameter

Typical application scenario
. Oil and gas: Pipeline pressure monitoring, tank level control, separator differential pressure measurement.
. Chemical and pharmaceutical: reactor pressure protection, distillation column flow calculation, corrosive media level detection.
.Power and energy: boiler feed water pressure monitoring, steam flow measurement, differential pressure analysis of desulfurization system.
. Water treatment and environmental protection: pump station pressure protection, sewage treatment level management, pipe network leakage monitoring.

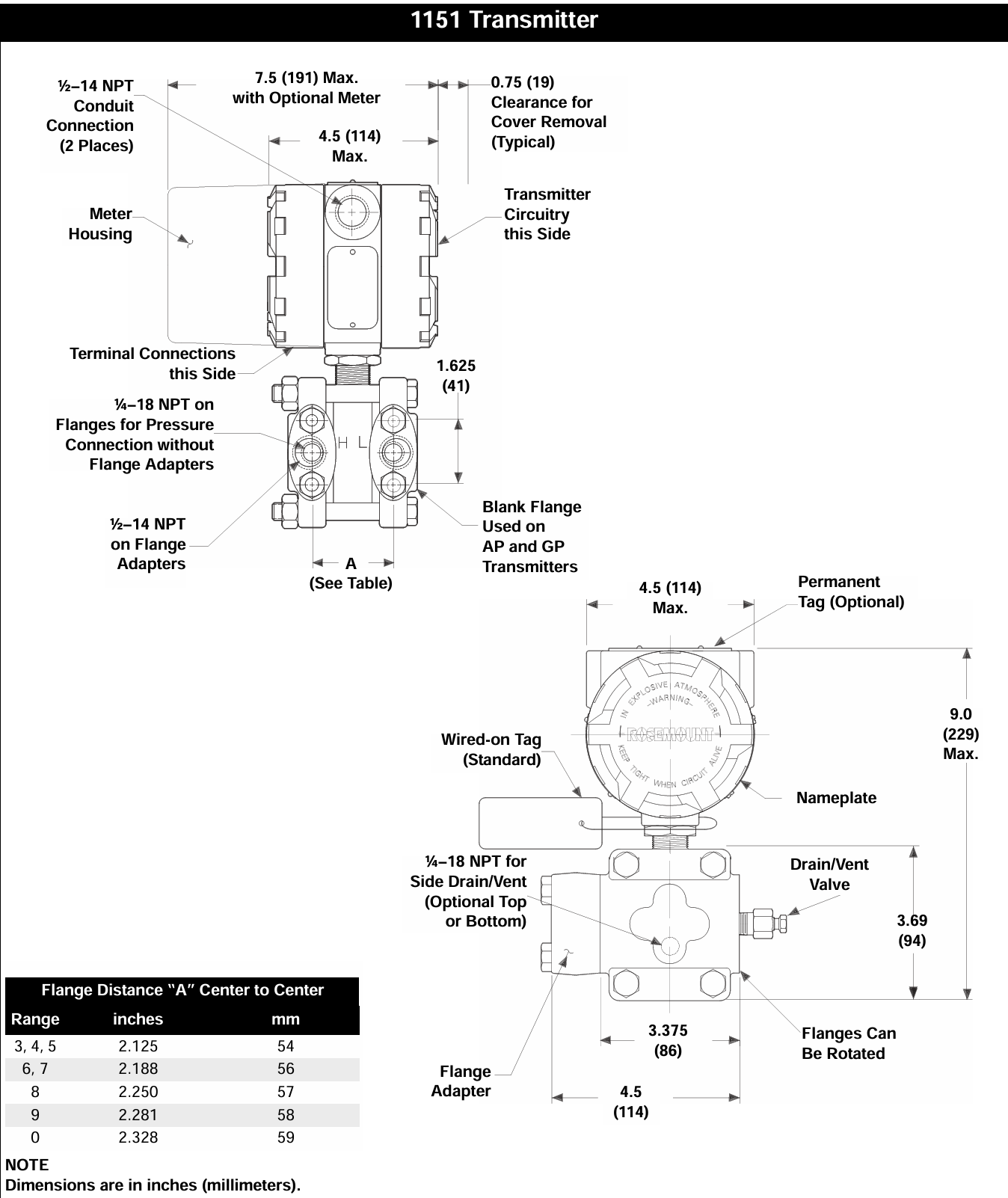

DIMENSIONS

Why choose Rosemount 1151?

. Industry verification: The global installed capacity of over one million units, after more than 30 years of harsh conditions test.
.Easy maintenance: Self-diagnostic function can warn sensor anomalies and reduce unplanned downtime.
. Cost optimization: Low power design, lower energy consumption in long-term operation, and significant life cycle cost advantages.
