Rosemount 1199WDC10AFFW71DA010 Pressure Transmitter
Rosemount 1199 Fran
--------Rosemount 1199 diaphragm seal system-----------------------------------------------------------------------------------------------
The Rosemount 1199 sealing system is reliable for remote measurement of process pressure and protects the transmitter diaphragm from hot and cold, corrosive or viscous processes. Rosemount
The sealing system is designed to ensure reliability in harsh applications. Rosemount 1199 seals can be connected to Rosemount 3051S, 3051, 2051, 3095 and 2088 differential pressure gauges Pressure and absolute pressure transmitters.
---------PRODUCTS DETAILS-----------------------------------------------------------------------------------------------------------------------------------------

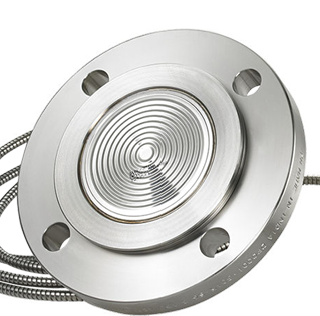

Rosemount 1199 Remote Mount Seals are used commonly at the top of the vessel when a DP measurement is required. The capillary that is used is available in three different diameters to optimize time response and reduce temperature effects. Product features and capabilities include:
■ Remote Mount Seals can be used for high temperature applications.
■ Remote Mount Seals are used on the low pressure side of the transmitter for Tuned System Assemblies that can be used for DP measurements in closed or pressurized tank applications.
■ Variety of process connections.
■ Quantified performance for the entire transmitter/seal assembly (QZ option)

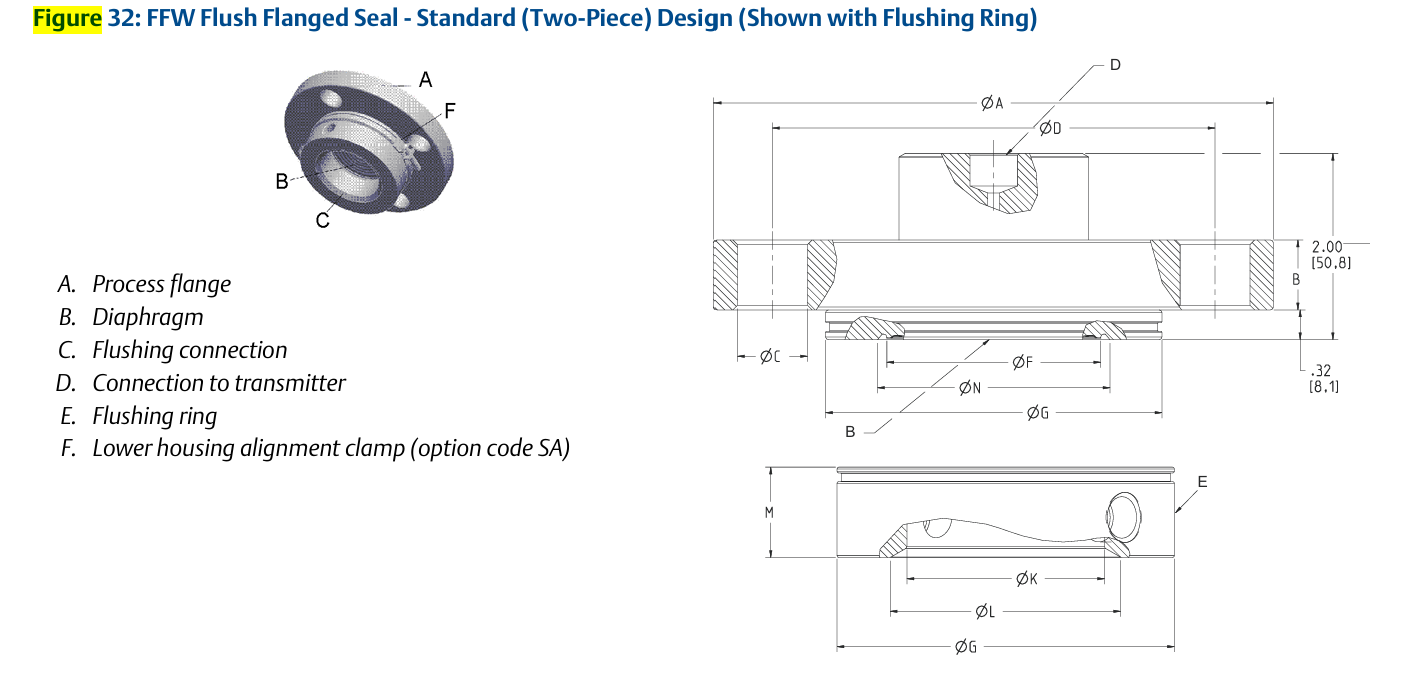

-------- Dimensional drawings--------------------------------------------------------------------------------------------------------------------
Rosemount 1199WDC10AFFW71DA010 All coplanar devices (Rosemount 3051S_C, 3051C, and 2051C)
1199
CODE
Connection type
Seal system
Seal location
W
Welded-repairable
One or two seal system
High side of transmitter
CODE
Fill fluid
Specific gravity
at 77 °F (25 °C)
Remote mount with capillary temperature limits(1)(2)
D
Silicone 200
0.934
–49 to 401 °F
(–45 to 205 °C)
CODE
Description
C
0.04-in. (1.092 mm) ID
CODE
Capillary length(Description)
10
10.0 ft. (3.0 m)
Required model components
A
ASME B16.5 (American Society of Mechanical Engineers)
FFW
Flush flanged seal(Process connection style)
CODE( Process connection size)
ASME B16.5
EN 1092-1/GOST 33259-15
JIS B2238
7
3-in.
N/A
80 A
CODE(Flange/pressure rating)
ASME B16.5
EN 1092-1/GOST 33259-15
JIS B2238
CODE
Diaphragm and wetted
Upper housing
Flange
DA
316L SST
316 SST
316 SST
0
NONE
0
NONE
-------1199 series remote transmission can detect liquid level, flow, pressure, interface, density well, and can be faced
Extreme high and low temperatures, with special process connections, we are focused on Rosemount transmitters, with better service and price.
