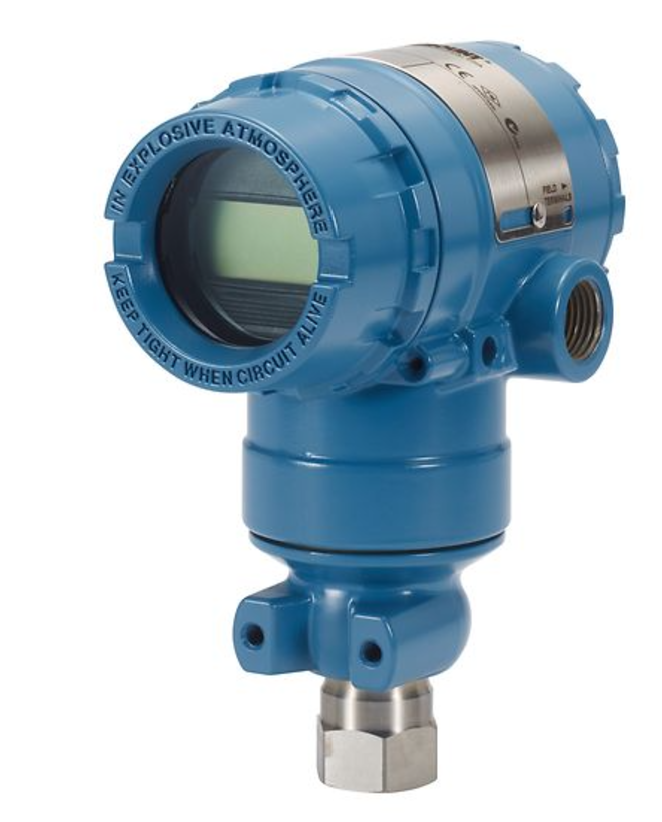

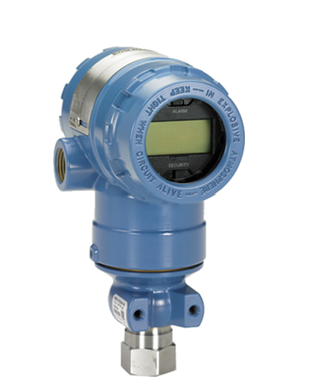

Rosemount™ 2051 In-Line Pressure Transmitter

an industry standard device that delivers reliable process data.

----Product Description--------------------------------------------------------------------------------------------------------------------------

Work more efficiently with the Rosemount 2051 In-Line Pressure Transmitter, an industry standard device that delivers reliable process data. This transmitter provides accurate gage and absolute measurements and is delivered installation-ready. This pressure transmitter features an intuitive Local Operator Interface which streamlines commissioning and reduces the number of tools you need, for a cost-effective and capable solution.

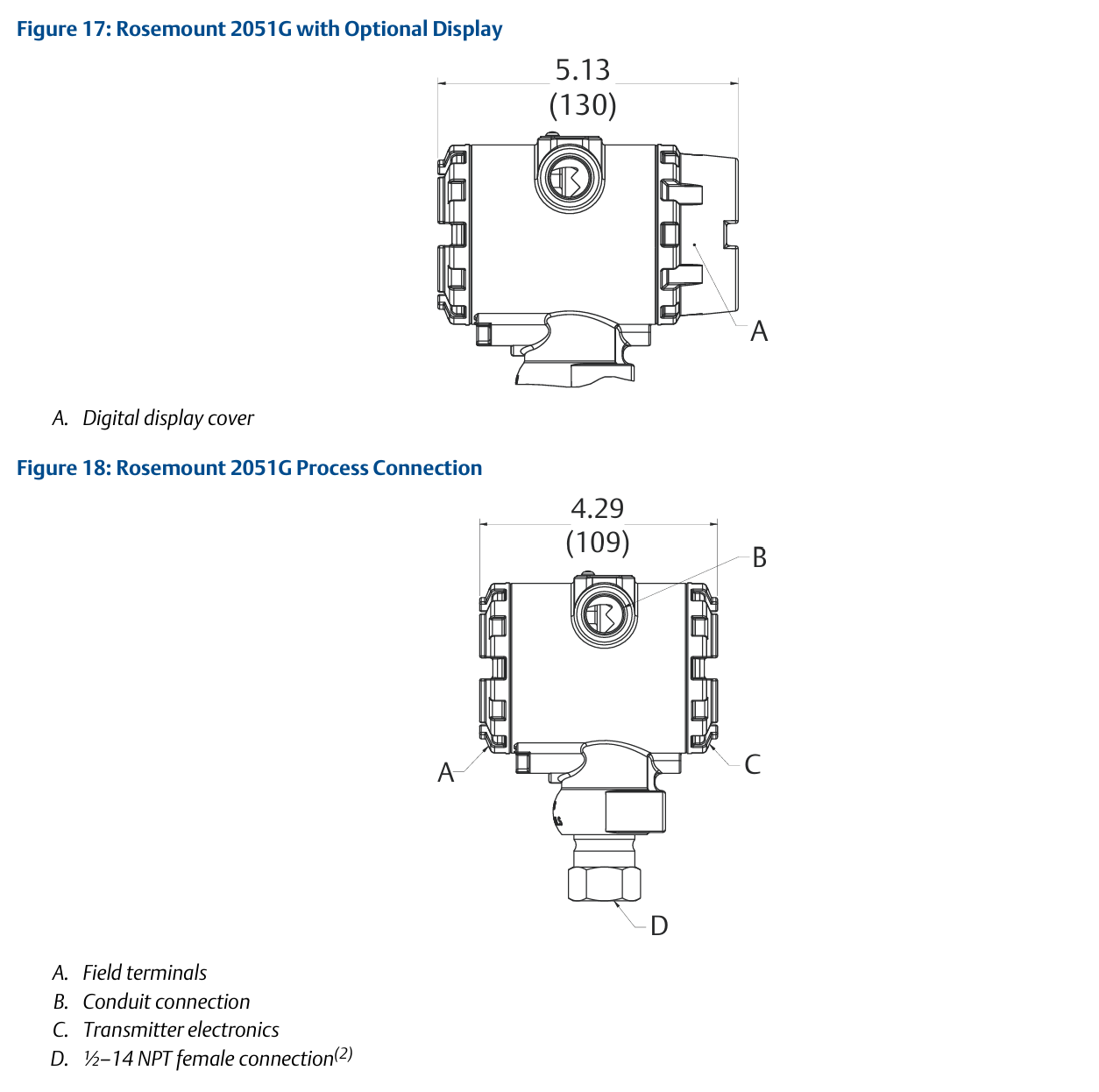

----Dimensional Drawings-------------------------------------------------------------------------------------------------------------------------------------------

Rosemount 2051T In-line Pressure Transmitter ordering information

2051T

Pressure type

CODE(G) Gage

CODE(A) Absolute

Pressure range
(Rosemount 2051TG)
(Rosemount 2051TA)

CODE(1)
–14.7 to 30 psi (–1.0 to 2.1 bar)
0 to 30 psia (0 to 2.1 bar)

CODE(2)
–14.7 to 150 psi (–1.0 to 10.3 bar)
0 to 150 psi (0 to 10.3 bar)

CODE(3)
–14.7 to 800 psi (–1.0 to 55 bar)
0 to 800 psi (0 to 55 bar

CODE(4)
–14.7 to 4000 psi (0 to 276 bar)
0 to 4000 psi (0 to 276 bar)

CODE(5) –14.7 to 10000 psi (–1.0 to 689 bar)
0 to 10000 psi (0 to 689 bar)

Transmitter output

CODE(A)
4–20 mA with digital signal based on HART® Protocol

CODE(F)
FOUNDATION™ Fieldbus Protocol

CODE(W)
PROFIBUS® PA Protocol

CODE(X)
Wireless

CODE(M)
Low-power, 1–5 Vdc with digital signal based on HART Protocol

Process connection style

CODE(2B) ½–14 NPT female

CODE(2C) G½ A DIN 16288 male

CODE(2F) Coned and threaded, compatible with autoclave type F-250-C (range 5 only)

Isolating diaphragm
Isolating diaphragm
Process connection wetted parts material

CODE(2) 316L SST
316L SST

CODE(3) Alloy C-276
Alloy C-276

Housing material
Description
Conduit entry size

CODE(A)
Aluminum
½–14 NPT

CODE(B)
Aluminum
M20 x 1.5

CODE(J)
SST
½–14 NPT

CODE(K)
SST
M20 x 1.5

CODE(P)
Engineered polymer
No conduit entries

CODE(D)
Aluminum
G½

CODE(M)
SST G½

----Rosemount 2051T direct link pressure transmitter with a choice of gauge and absolute pressure for excellent performance and accuracy up to 0.05%. Available protocols include 4-20 mA HART®, FOUNDATION™ Fieldbus, PROFIBUS® PA, and HART 1-5 Vdc low power with security level certification.

NOTE:For wireless options and other options, please call us, we will give you the corresponding data sheet, please trust our service, affordable, qualified quality

Introduction of Xi 'an Lilu Trading Co., LTD

Xi 'an Lilu Trading Co., Ltd. is a professional import and export focus on transmitter, flow meter, positioner instrument industry provider. We have a huge advantage in the following brand ROSEMOUNT, YOKOGAWA, HONEYWELL, SMC, IMI NORGREN, ABB, ENDRESS + HAUSER, FISHER, YTC, AZBIL, SIEMENS, and some European brands.

We look forward to your inquiry and hope that we can start the best cooperation.

Products

Rosemount™ 2051 In-Line Pressure Transmitter

Categories

About Us

Contacts

Message

2051T
Pressure type
CODE(G)	Gage
CODE(A)	Absolute
Pressure range	(Rosemount 2051TG)	(Rosemount 2051TA)
CODE(1)	–14.7 to 30 psi (–1.0 to 2.1 bar)	0 to 30 psia (0 to 2.1 bar)
CODE(2)	–14.7 to 150 psi (–1.0 to 10.3 bar)	0 to 150 psi (0 to 10.3 bar)
CODE(3)	–14.7 to 800 psi (–1.0 to 55 bar)	0 to 800 psi (0 to 55 bar
CODE(4)	–14.7 to 4000 psi (0 to 276 bar)	0 to 4000 psi (0 to 276 bar)
CODE(5)	–14.7 to 10000 psi (–1.0 to 689 bar)	0 to 10000 psi (0 to 689 bar)
Transmitter output
CODE(A)	4–20 mA with digital signal based on HART® Protocol
CODE(F)	FOUNDATION™ Fieldbus Protocol
CODE(W)	PROFIBUS® PA Protocol
CODE(X)	Wireless
CODE(M)	Low-power, 1–5 Vdc with digital signal based on HART Protocol
Process connection style
CODE(2B)	½–14 NPT female
CODE(2C)	G½ A DIN 16288 male
CODE(2F)	Coned and threaded, compatible with autoclave type F-250-C (range 5 only)
Isolating diaphragm	Isolating diaphragm	Process connection wetted parts material
CODE(2)	316L SST	316L SST
CODE(3)	Alloy C-276	Alloy C-276
Housing material	Description	Conduit entry size
CODE(A)	Aluminum	½–14 NPT
CODE(B)	Aluminum	M20 x 1.5
CODE(J)	SST	½–14 NPT
CODE(K)	SST	M20 x 1.5
CODE(P)	Engineered polymer	No conduit entries
CODE(D)	Aluminum	G½
CODE(M)	SST	G½
