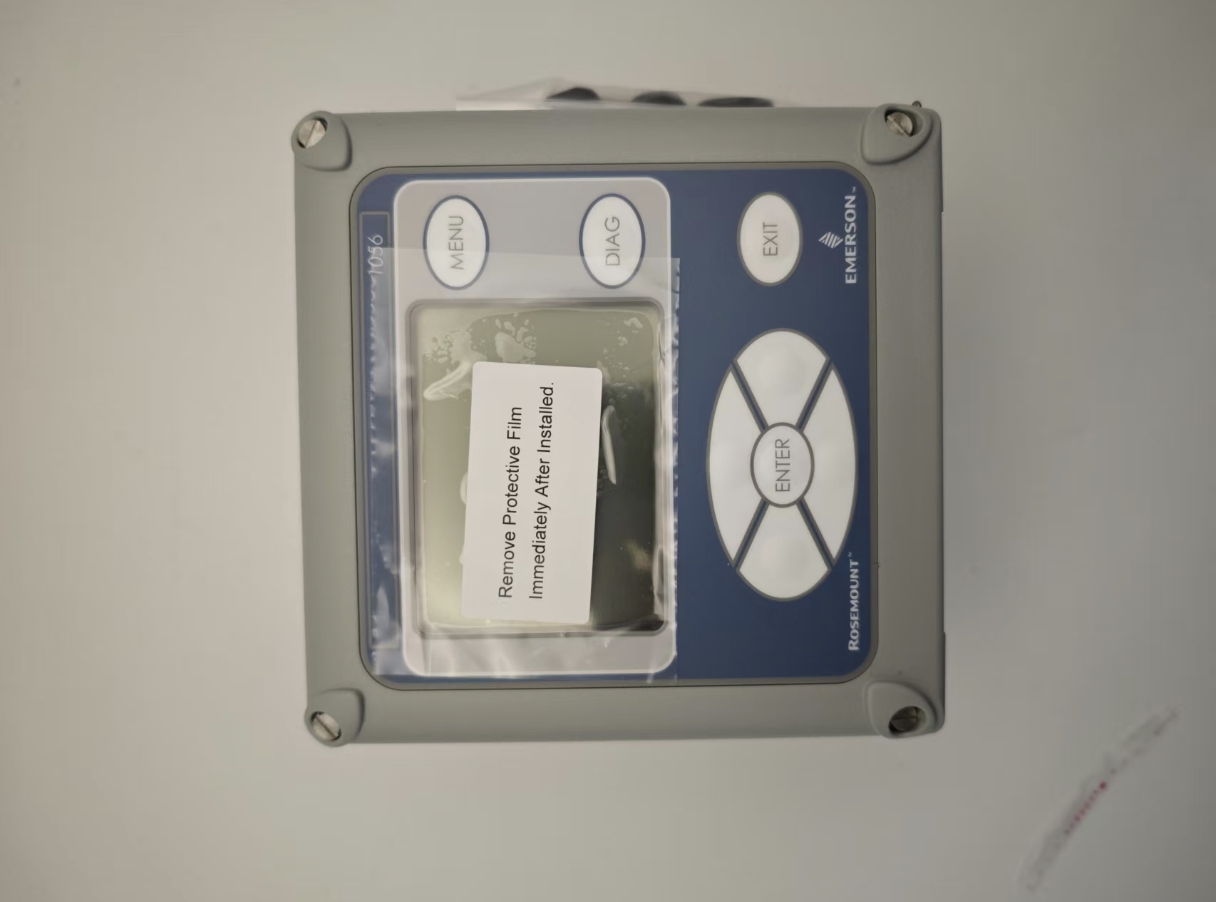

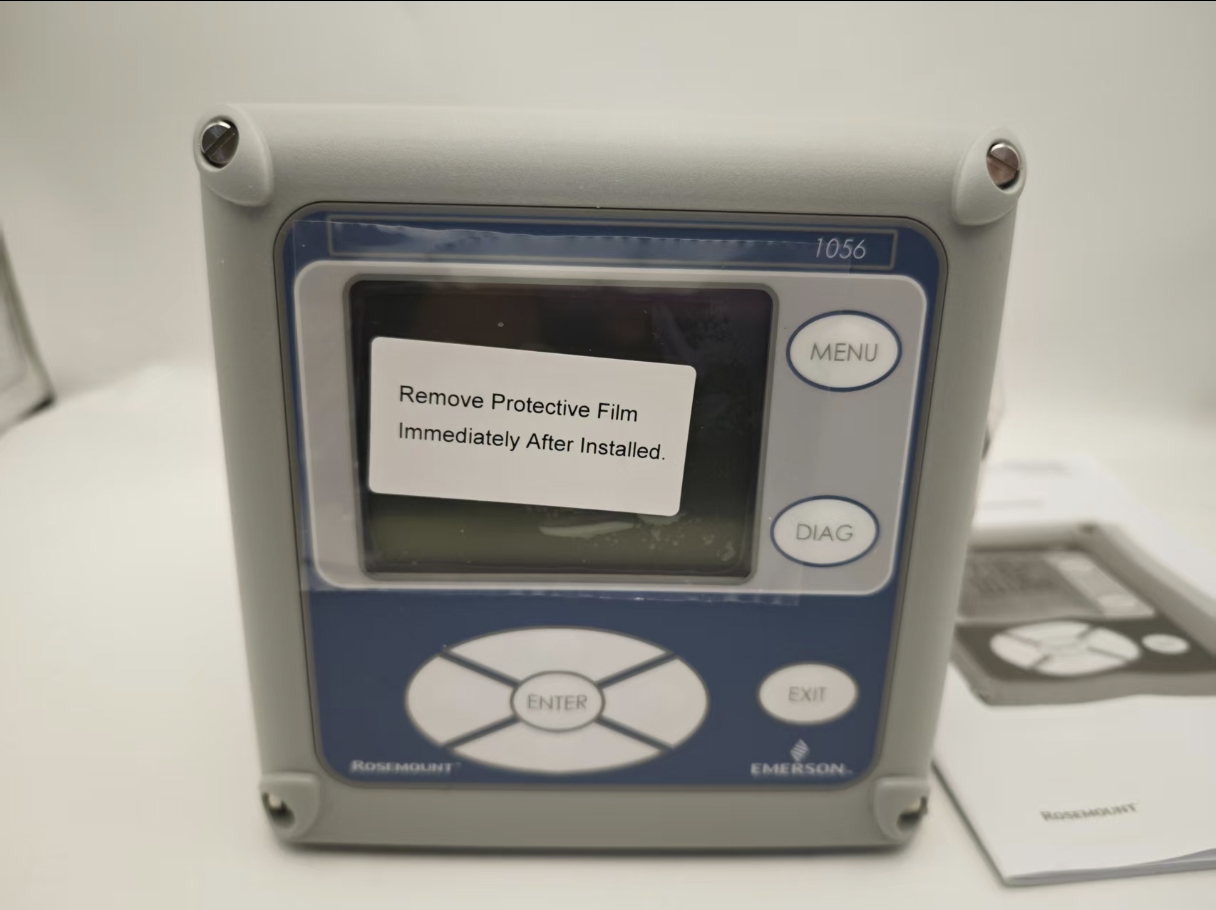

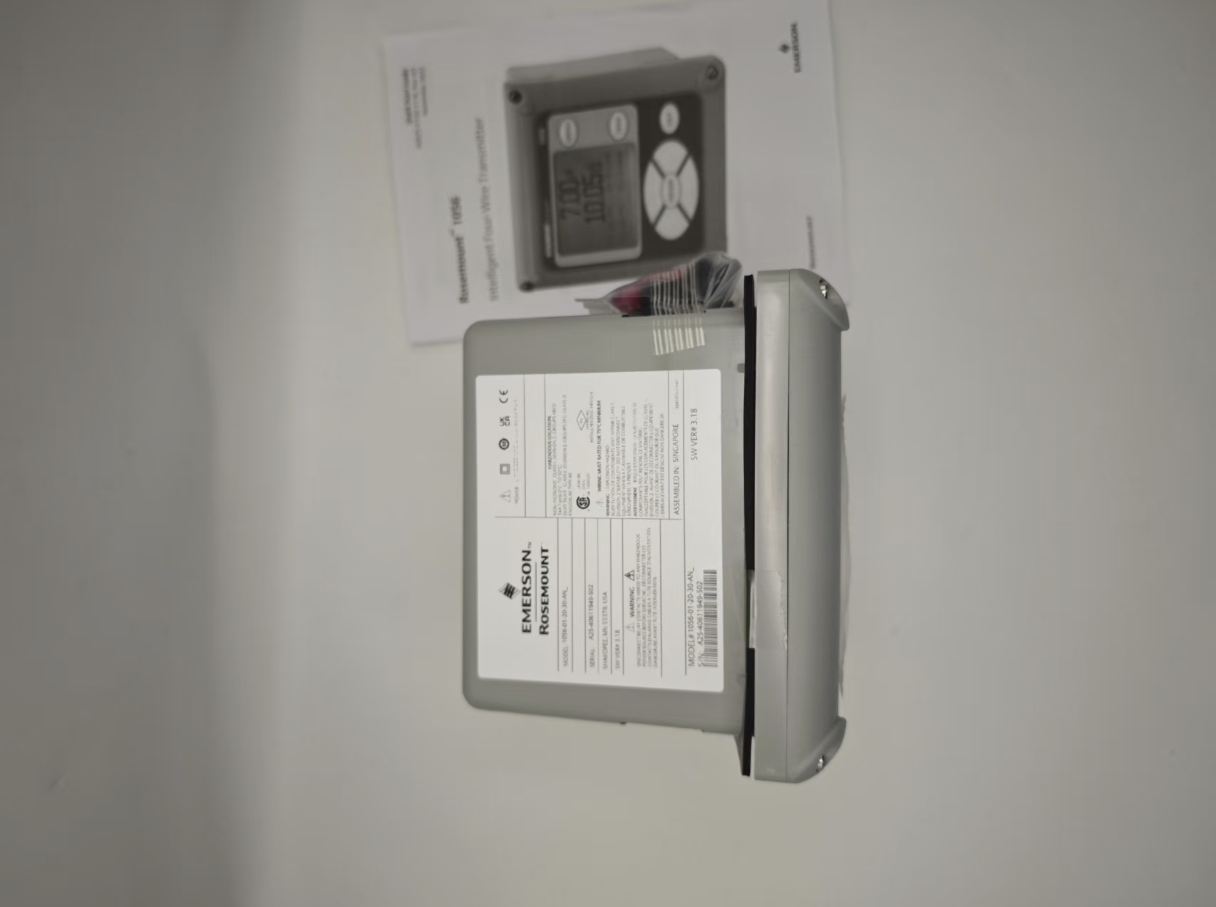

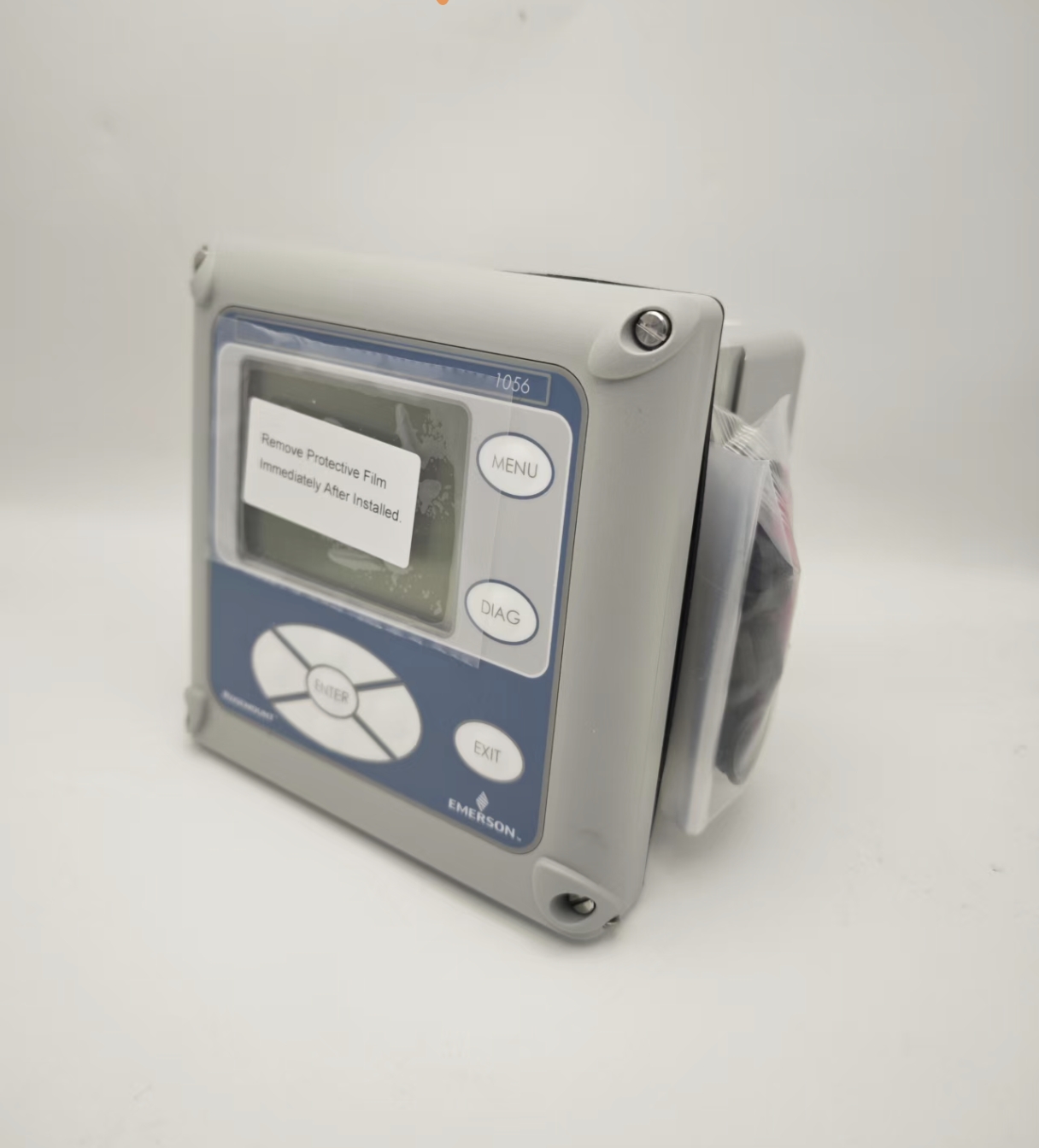

    The Rosemount 1056 is a high performance, multi-parameter liquid analysis transmitter designed for industrial, commercial and municipal applications. Its modular design and dual input channels support a flexible sensor combination to meet the measurement needs of a wide range of parameters such as conductivity, dissolved oxygen, pH, turbidity, and significantly reduce system complexity and cost, while saving installation space.

Core feature
1. Multi-parameter measurement and flexible configuration
- Support single/dual sensor input, can freely combine measurement parameters, such as conductivity (contact/ring), dissolved oxygen, pH/ORP, chlorine, ozone, turbidity, etc., to meet the needs of complex working conditions.
- Modular design allows for on-site replacement of signal input boards and adjustment of configuration without disassembling the device, improving maintenance efficiency.

2. High precision and reliability
- Measuring accuracy up to ±0.05mA (terminal, 25°C), dissolved oxygen resolution up to 0.01ppm, pH accuracy ±0.01pH to ensure data accuracy.
- Support automatic temperature compensation (RTD platinum thermal resistance) and manual slope compensation to adapt to temperature fluctuations.

3. Intelligence and ease of use
- Quick start programming and automatic sensor plate recognition to simplify installation process.
- Equipped with large size customizable display, real-time display of process parameters and diagnostic information, support Chinese operation interface.

4. Compatibility and scalability
- Compatible with Rosemount's full range of sensors (pH, conductivity, dissolved oxygen, etc.) and supports HART®, Profibus DP and Foundation fieldbus communication protocols for easy integration into PLC/DCS systems.
- Built-in data logger and PID controller for remote access and process optimization.

5. Durable design
- The housing is made of polycarbonate material with IP65/NEMA 4X protection grade, suitable for harsh industrial environment.
- Wide operating temperature range (-20 to 65°C) for extreme operating conditions.

Technical Specifications
Power options:
- AC power supply (115/230VAC, 84-265VAC) or DC power supply (20-30VDC), supporting a variety of industry standard power supplies.
- Some power supply configurations include 4 programmable relays for enhanced control.

Communication protocols: HART®, Profibus DP, Foundation Fieldbus (some models).

Typical application scenario
- Industrial process control: real-time monitoring of pH and conductivity in chemical and pharmaceutical industries.
- Water quality management: detection of dissolved oxygen, turbidity and residual chlorine in municipal water treatment.
- Environmental monitoring: pH correction and pollutant concentration analysis of sewage discharge.
- Energy industry: Electrical conductivity and dissolved oxygen monitoring of boiler feed water and cooling systems.


Selection guide
Rosemount 1056 Model Code Example:
- **1056-XX-XX-XX-XX**
- ** Electrical source code ** : 01 (115/230VAC), 02 (24VDC with relay), 03 (wide voltage AC with relay).
- ** Measurement channels ** : 20 (contact conductivity), 21 (ring conductivity), 22 (pH/ORP), 25 (dissolved oxygen), etc.
- ** Communication code ** : AN (dual 4-20mA analog output).

Example model:
- **1056-01-25-38-AN** : Single dissolved oxygen sensor input, 230VAC power supply, dual analog output.
- **1056-03-22-35-AN** : pH and dissolved oxygen dual sensor input, wide voltage supply, with relay.

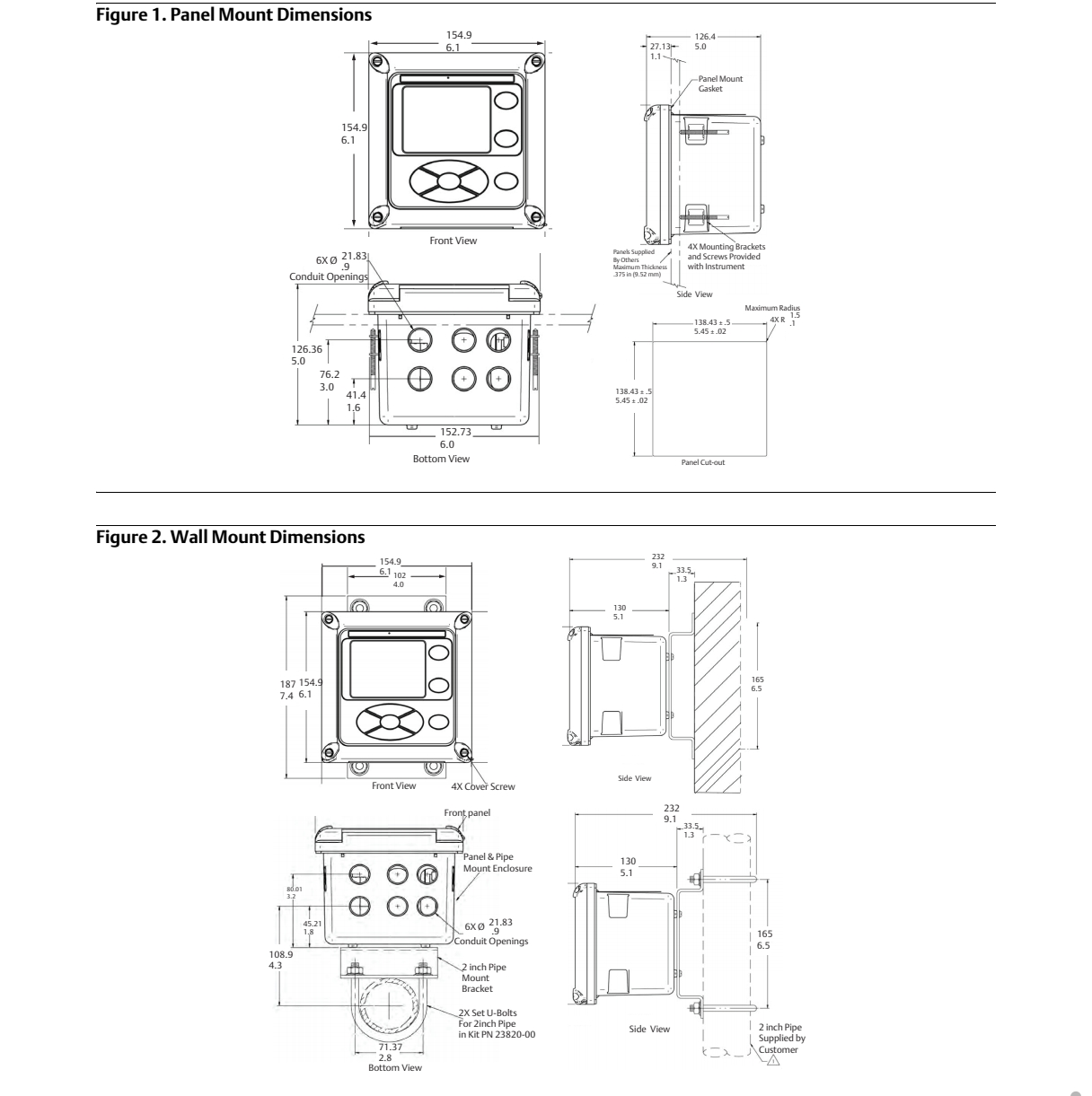

Dimensional Drawings
