Rosemount 2700 series mass flowmeter
The Rosemount 2700 series is based on the high accuracy Coriolis (Micro Motion) Multifunctional flow measurement equipment with MVD (Multivariable Digital Processing) technology, designed for complex industrial environments.
The Rosemount 2700 series is a versatile flow measurement device based on high precision Coriolis (Micro Motion®) MVD (Multivariable Digital Processing) technology, designed for complex industrial environments. It supports high-precision measurement of liquid, gas and two-phase flows, and is suitable for key application scenarios such as trade handover and process control.
Core feature
1. High precision and reliability
- With MVD technology, measurement uncertainty of ±0.014% can be maintained even in gas-bearing, high noise or extreme flow ranges.
- Intelligent self-verification function, which supports online verification of sensor operating status without interrupting the process.
2. Flexible installation and expansion
- Support integrated or split mounting (stainless steel version only split), suitable for four-wire or nine-wire sensors.
- Compatible with multiple I/O protocols including RS-485, HART, Modbus and WirelessHART™ to reduce cabling costs.
3. Industry certification and security
- Through SIL2/SIL3 safety certification and ATEX, IECEx, NEPSI and other explosion-proof certification, suitable for zone 1 / Zone 2 hazardous environment.
- Comply with trade transfer standards to ensure the reliability of measurement data.
4. User-friendly design
- Optional backlit dual-line display, support multi-language interface (Chinese/English), simple and intuitive operation interface.
- Support local or remote configurations for real-time diagnostic information via WirelessHART™.
-40°'C to +70°C(sensor),
-20'C to +60'C(transmitter)
Project
Standard
shell material
Cast aluminum (coated with
polyurethane paint) or CF3M
stainless steel, NEMA 4X
protection class (lP66)
Power range
18-100 VDC or 85-265 VAC
(automatic switching)
output Signalis
4-20 mA, frequency output, RS
-485, supporting HART
display
screen

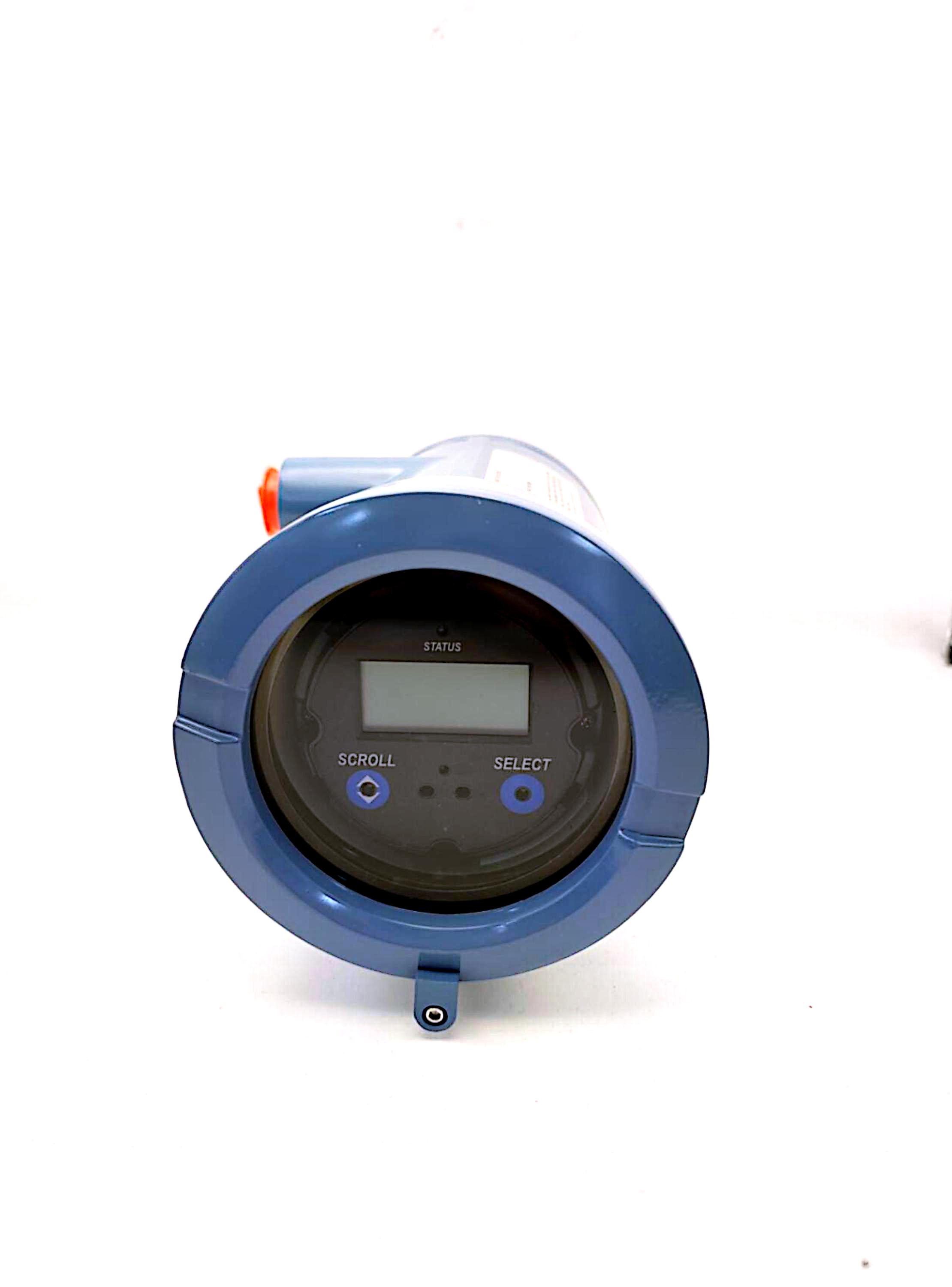

Selectable backlight dual-line display
support CSA, UL, ATEX, and other
certification marks
installation
mode
ntegral or split(split)
Type requires a junction box,
with standard 3-meter shielded
cable
suitable media
iquid, gas, two phase flow.
Covers sanitary, high pressure, high
Temperature and low
temperature applications
Ambient
temperature
Typical application field
. Oil and gas: trade transfer measurement, pipeline monitoring.
. Chemical and pharmaceutical: feed control of reactor, measurement of high purity media.
. Food and beverage: Hygienic flow monitoring, in line with FDA standards.
. Energy and Environmental protection: Steam flow, wastewater treatment process monitoring.
Selection Guide
Model Example: 2700R11ABMEZZZ
- 2700 : Coriolis MVD type 2700 sensor
- R : 4-wire split installation
- 11 : Automatic power switch (18-100 VDC / 85-265 VAC)
- A : Analog output (1×mA, 1× frequency, RS-485)
- B : 1/2 inch NPT interface
- M : Chinese manual
- ZZZ : standard configuration
Optional Configuration :
- Display type (backlit/non-backlit), certification level (ATEX, NEPSI), language version (Chinese/English).
