Product overview

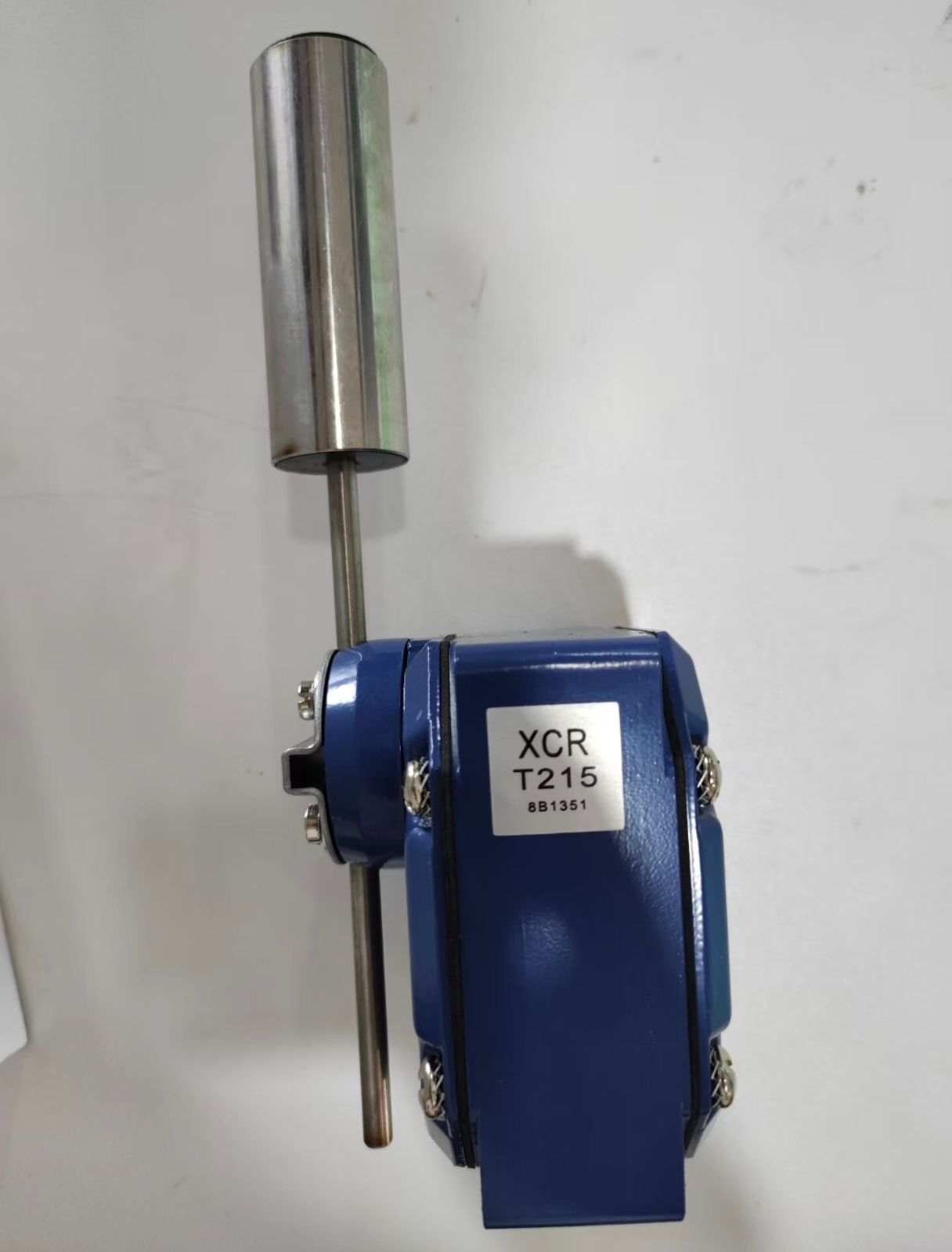

The Schneider XCR-T215 limit switch is a high-performance electromechanical inspection device designed for sequence control, positioning detection and safety limit protection in industrial automation systems. Its single-wheel automatic reset structure and high-reliability contact system make it widely used in machine tools, lifting machinery, elevator control and conveyor and other scenarios to ensure the safe operation and accurate control of equipment.
---
Core feature
1. Structural design
Operating head and housing: zinc alloy housing, with galvanized steel spring return roller operating head, wear resistance and impact resistance, suitable for harsh industrial environment.
Contact system: Equipped with instantaneous contact (1NC+1NO), support fast circuit switching, short response time, mechanical life of up to 3 million times or more, to ensure long-term stable operation.
Reset mechanism: single-wheel automatic reset design, when the external force is removed through the spring to quickly restore the initial state, reducing the need for manual intervention.
2. Safety and protection
Protection level: IP54 protection, dustproof and waterproof, suitable for wet and dusty environment.
Safety sign: The color of the operating head meets international standards (red means stop/danger, green means start), and is equipped with a metal protective stop ring to prevent miscontact.
3. Technical parameters
Electrical performance: Rated insulation voltage 500V (pollution level 3), rated current 3A, contact resistance ≤25MΩ, support screw clamp terminal connection (cable diameter 9-12mm).
Mechanical properties: trigger torque ≥1N·m, mechanical life 300,000 times, operating temperature range -25℃ to 70℃.
Size and weight: Compact design, typical size 85×95×75mm (width × height × depth), weight about 1.17kg, easy to install.
---
Application field
Lifting equipment: used for bridge crane, port machine position lim
