------Product characteristics----------------------------------------------------------------------------------------------------------------------

         The electronic circuit board of the transmitter has a self-configuration function, so it can be replaced on the spot, which is its typical feature, which can help the factory improve efficiency. The unique hot-swappable field display makes it easy to set up and configure, helping customers save time and maintenance and spare parts costs. And the innovative TTG transwindow technology can be operated in the field without opening the cover in explosion-proof situations, saving a lot of time, and the configuration of the instrument can be completed in a few minutes only by finger.

         In addition, the 266DSH comes standard with a plug diagnosis function that lets customers know when a plug is trending, allowing for preventive maintenance.
The SIL2/SIL3 certificate issued by TUV Nord under the IEC61508 standard is another distinguishing feature of the 266 product range. This certificate is a security guarantee that makes 266DSH suitable for security applications.

         The 266DSH supports the wireless WirelessHART communication protocol to get more information than the pressure measurements. Now you can monitor hard-to-reach points for employees, ensuring their personal safety. The 266 wireless pressure transmitter has a battery life of 10 years at an update rate of 32 seconds, providing customers with a low-cost, reliable measurement solution.

         Because there is no complex cable installation problem, the construction period can be greatly shortened and the overall operating cost can be reduced. Measurement is easy with ABB's wireless meters.

------Engineered solutions for all applications--------------------------------------------------------------------------------------------------
Base accuracy

 • from 0.06 % of calibrated span (optional 0.04 %)

 Reliable sensing system coupled with very latest digital technologies

 • provides large turn down ratio up to 100:1

 Comprehensive sensor choice

 • optimize in-use total performance and stability

 10–year stability

 • 0.15 % of URL

 Flexible configuration facilities

 • provided locally via local LCD keypad

 TTG (Through-The-Glass) keypad technology

 • allows quick and easy local configuration without opening the cover,

 even in explosion proof environments

 IEC 61508 certification

 • version for SIL2 (1oo1) and SIL3 (1oo2) applications

 PED compliance

 • Category III for PS > 20 MPa, 200 bar

 • Sound Engineering Practice (SEP) for PS ≤ 20 MPa, 200 bar

 WirelessHART version

 • the battery powered solution compliant to IEC 62591

 Best-in-class battery life

 • up to 10 years @ 32 s update time

 • in-field replaceable

 Product in compliance with Directive 2011/65/UE (RoHS II)

 In-built advanced diagnostics

------ Dimensions----------------------------------------------------------------------------------------------------------------------------------

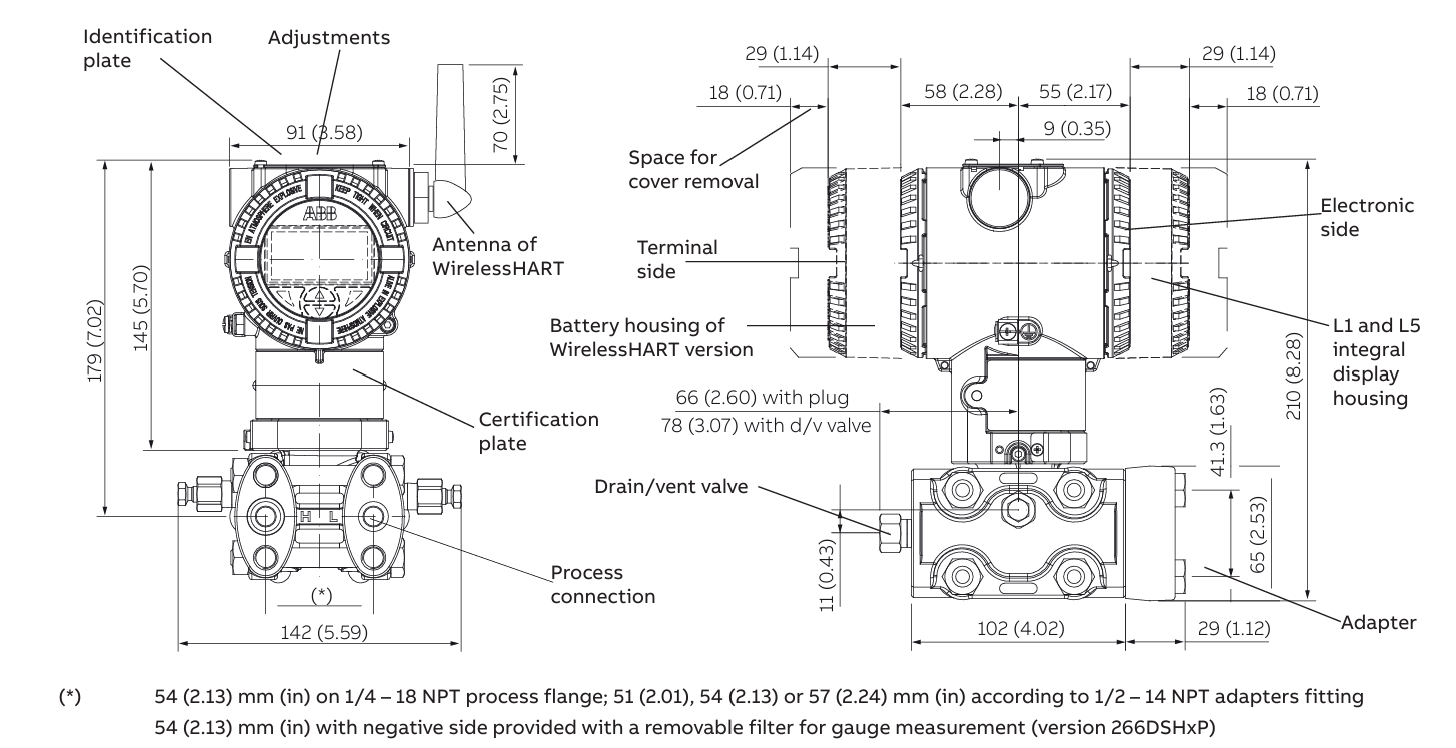

                         Standard static transmitter with barrel housing - horizontal flanges

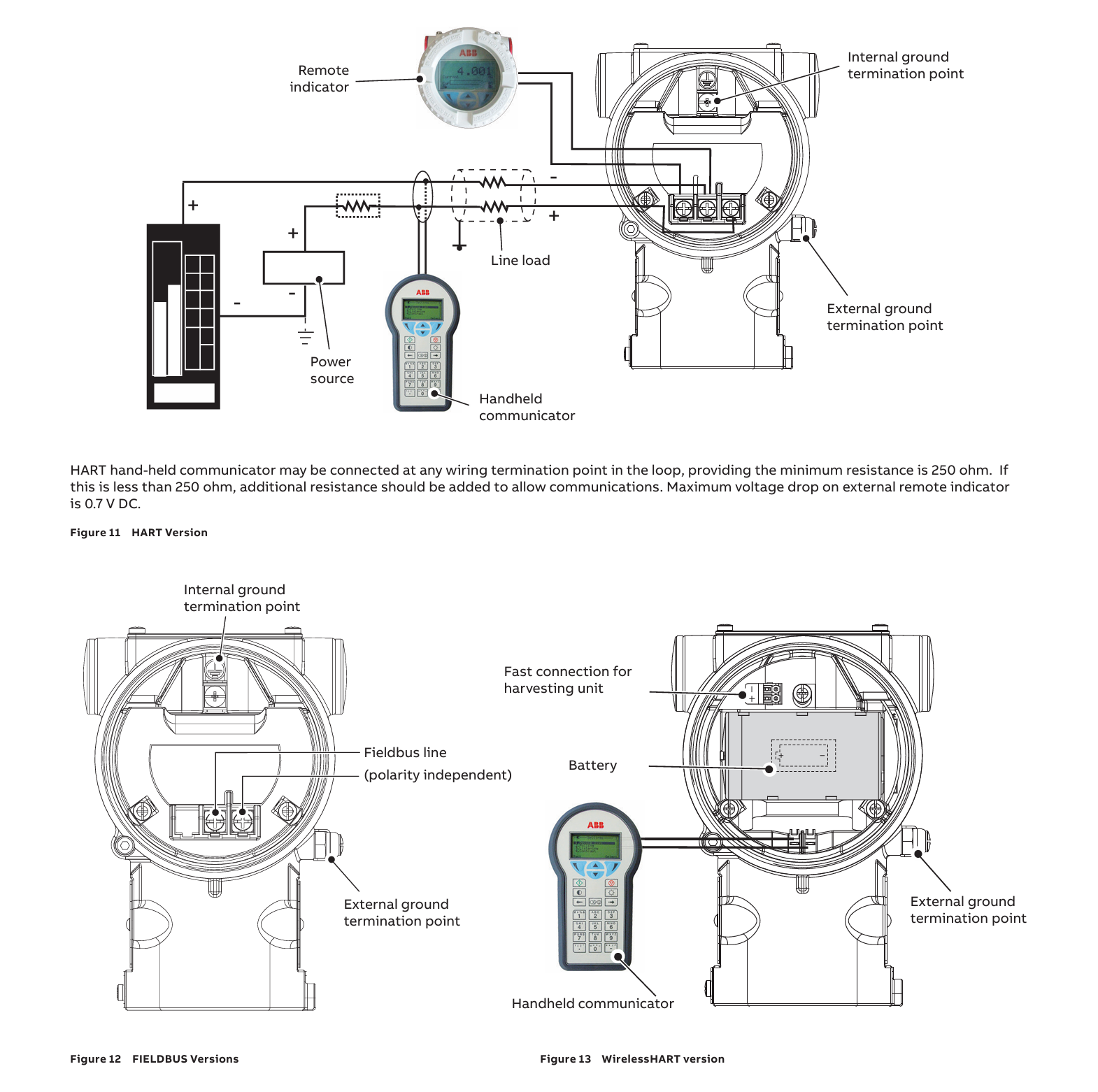

 ------Electrical connections----------------------------------------------------------------------------------------------------------------------

--------For various operating instructions and specific selection, you can contact us, we can provide you with data sheets, looking forward to hearing from you.
